NB: Do not mix 10 mm and 30 mm bars. The bars are clearly marked and distinguishable with regard
to both resolution (10 and 30) and for TX and RX

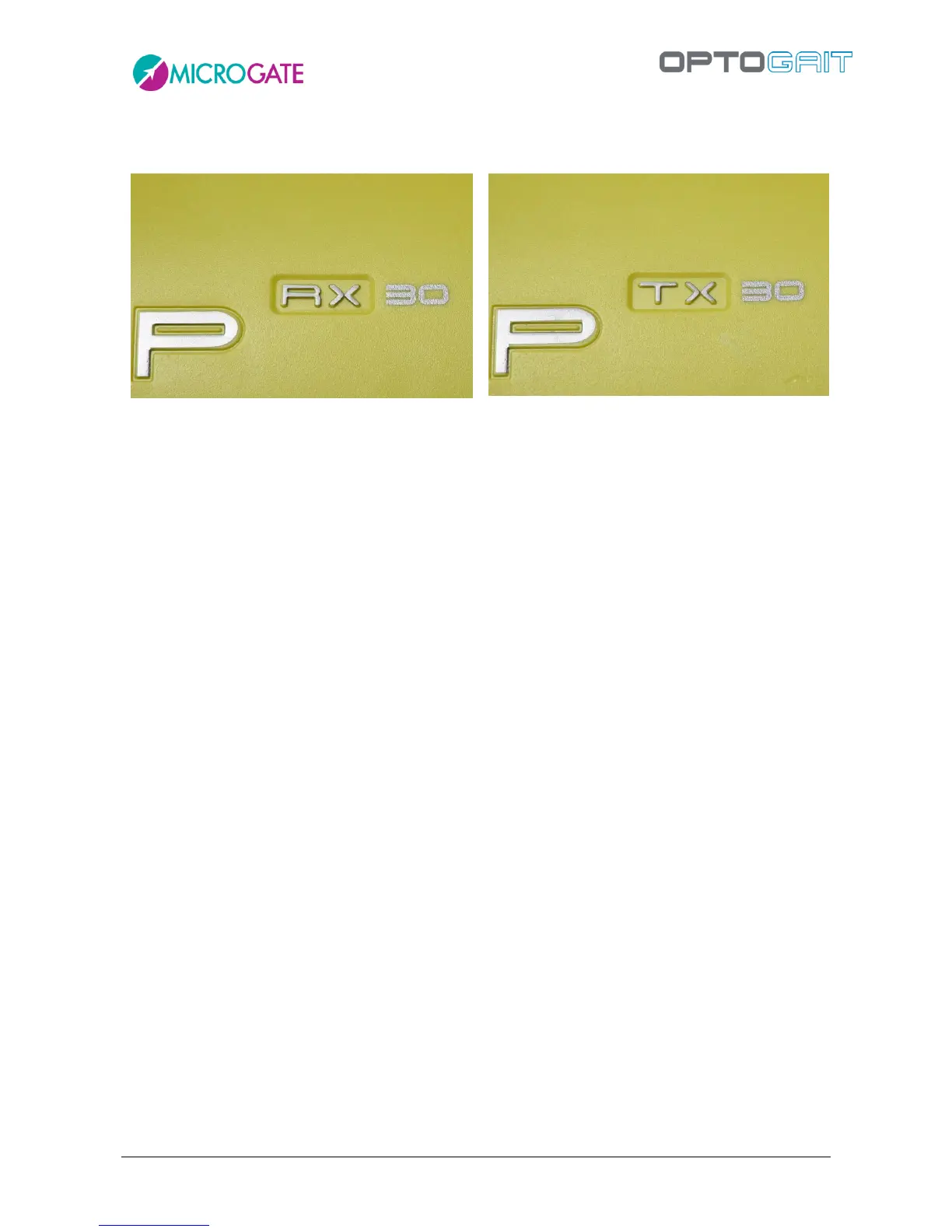

Figure 22 - RX bar
Figure 23 - TX bar
3.3 POWER SUPPLY
OptoJump Next runs on batteries with a life dependent on the number of bars connected (see
