4.2.2.5 TREADMILL RUNNING TEST
Main Parameters
 Start type: this can only be ‘Software command’
 Stop type: this can only be ‘Software command’ or ‘End of time’
 Test length: appears only if Stop type = ‘End of Time’ and specifies how many
minutes:seconds the test must last (from 00:01” to 59’:59”)
 Treadmill speed: indicates the speed in km/h the treadmill is set at; the setting range is
0.1-20.0 km/h with steps of 0.1.
 Direction: Indicates, if the walking direction is 'Interface side' or 'Opposite side'.
Therefore, if the interface drums are at the end of the treadmill choose 'Opposite Side',
or vice versa.

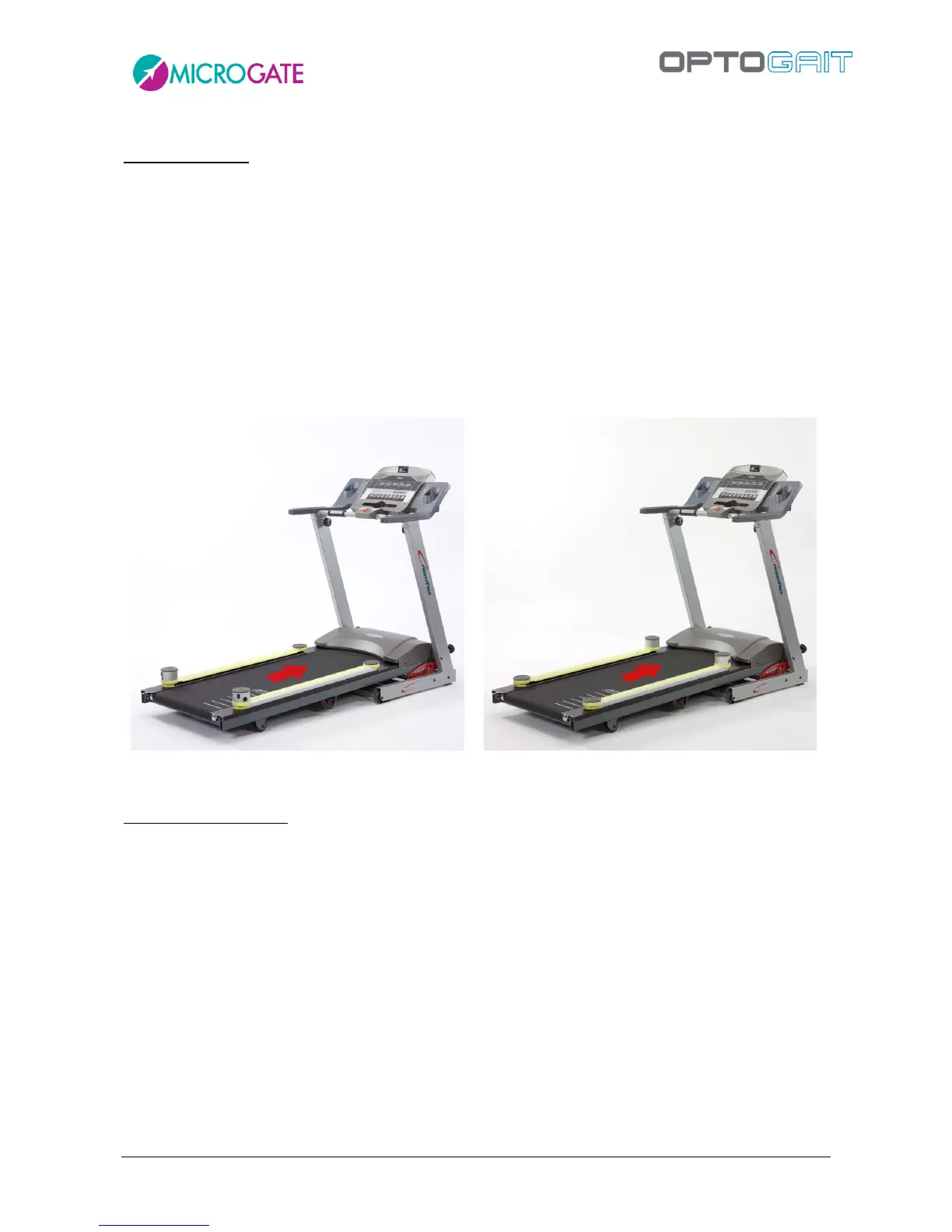

Figure 46 – Direction: OPPOSITE Side
Figure 47 – Direction: IINTERFACE Side
Secondary Parameters
 Minimum contact time [ms]: see above
 Minimum flight time [ms]: see above
 Maximum flight time [ms]: see above
 Step length calculation: see above
 Minimum gap between feet [cm or ft]: see above
 Minimum foot length [cm]: see above
 Filter GaitR IN and Filter GaitR OUT [led]: see above
