3.0 Hardware Features
3.1 VIP4G
The VIP4G is a fully-enclosed unit ready to be interfaced to external devices.
VIP4G Hardware Features Include:
 Standard Connectors for:
 1 WAN Ethernet Ports (RJ45)
 3 LAN Ethernet Ports (RJ45)
 Data Port (RS232/DB9)
 4-Pin: MATE-N-LOK Type Connector for Power
 6-Pin: MATE-N-LOK Type Connector for RS485 Data
 10-Pin: MATE-N-LOK Type Connector for Digital I/O
 Cellular Antenna (SMA Female Antenna Connection x2)
 WiFi Antenna (RP-SMA Female Antenna Connection x2)
 Built in GPS (SMA Female Antenna Connection)
 Status/Diagnostic LED’s for CPU, POWER, RSSI, RF_ACT, GPS, CELL_ACT
 CFG Button for resetting to factory settings and firmware recovery operations
 Mounting Holes/Tabs

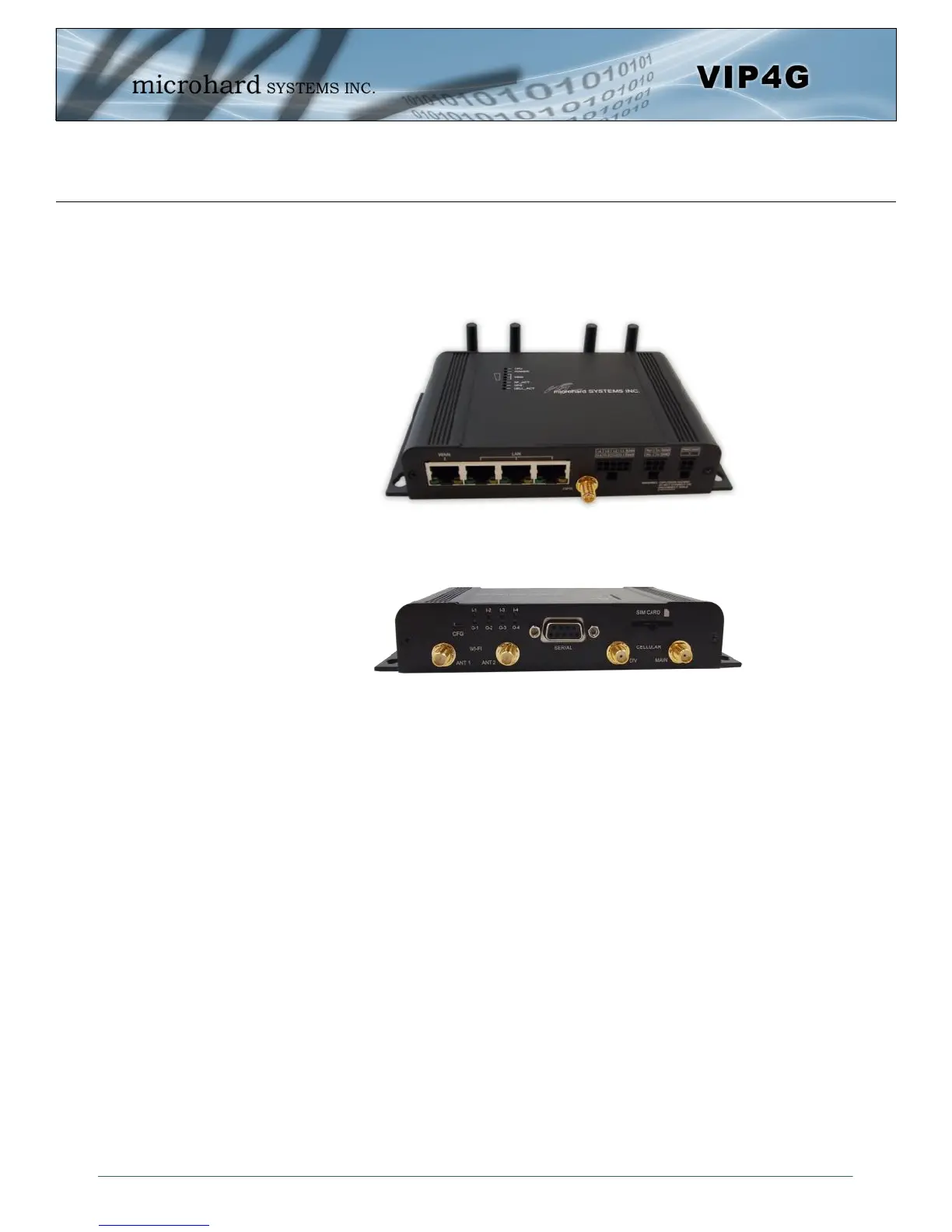

Image 3-1: Front View of VIP4G
Image 3-2: Rear View of VIP4G
