MSB780(X) - User’s Guide
Table 4: Service serial port parameters
Service serial port
Baud Rate 230400
Data Bits 8
Parity None
Stop bits 1

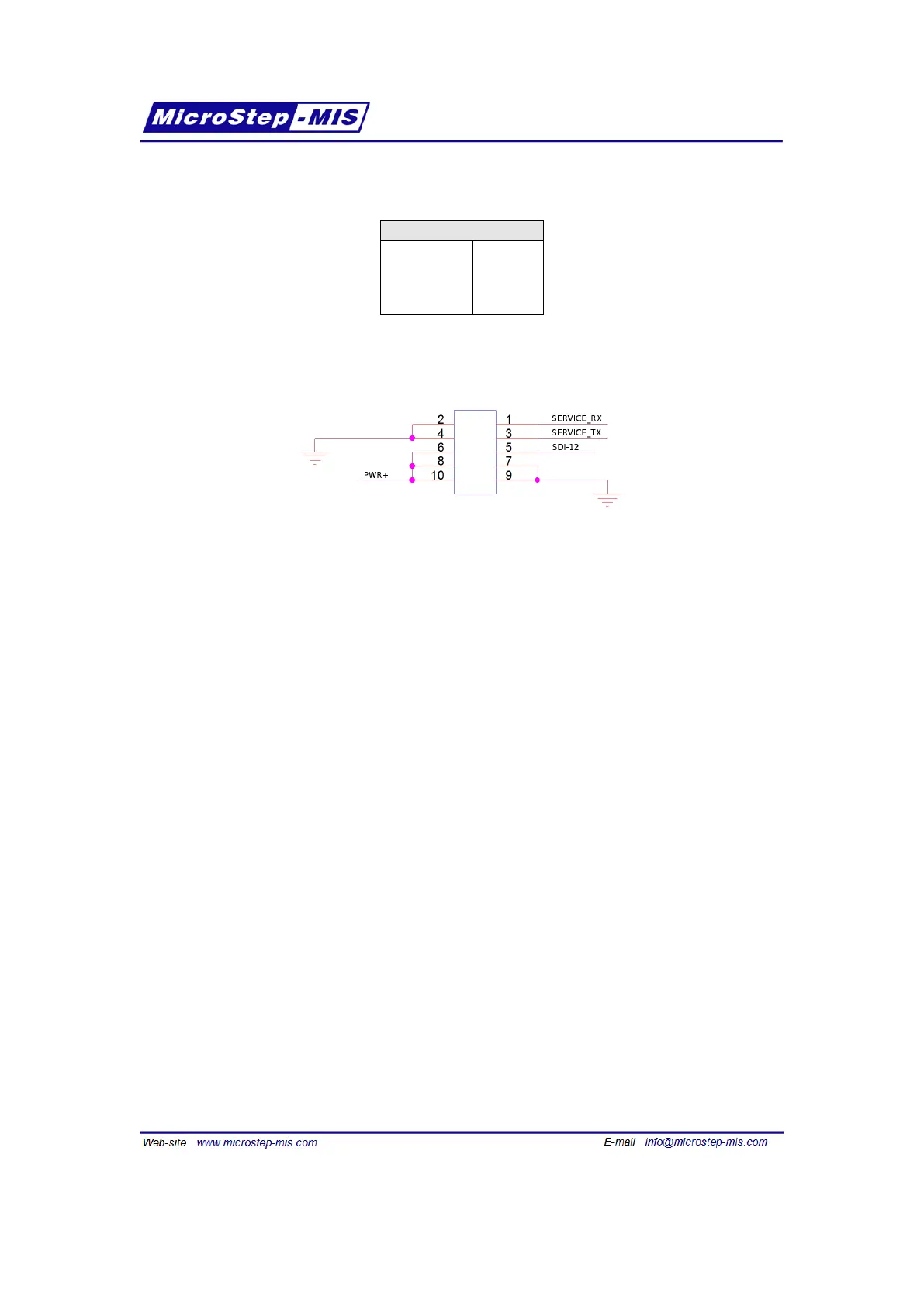

In case you have available 3.3 V TTL UART to RS-232 converter available, the service cable
may be built-up using schematic in Figure 3.
Figure 3: Service connector
Note: Service UART lines SERVICE_RX, SERVICE_TX may not be connected directly to RS-
232.
3 MSB780X transfer standard version
The version MSB780X transfer standard with battery comes in a carry case along with equip-
ment, as seen in the figure 4.
16
