MSB780(X) - User’s Guide
3.2 Turning the transfer standard on/off

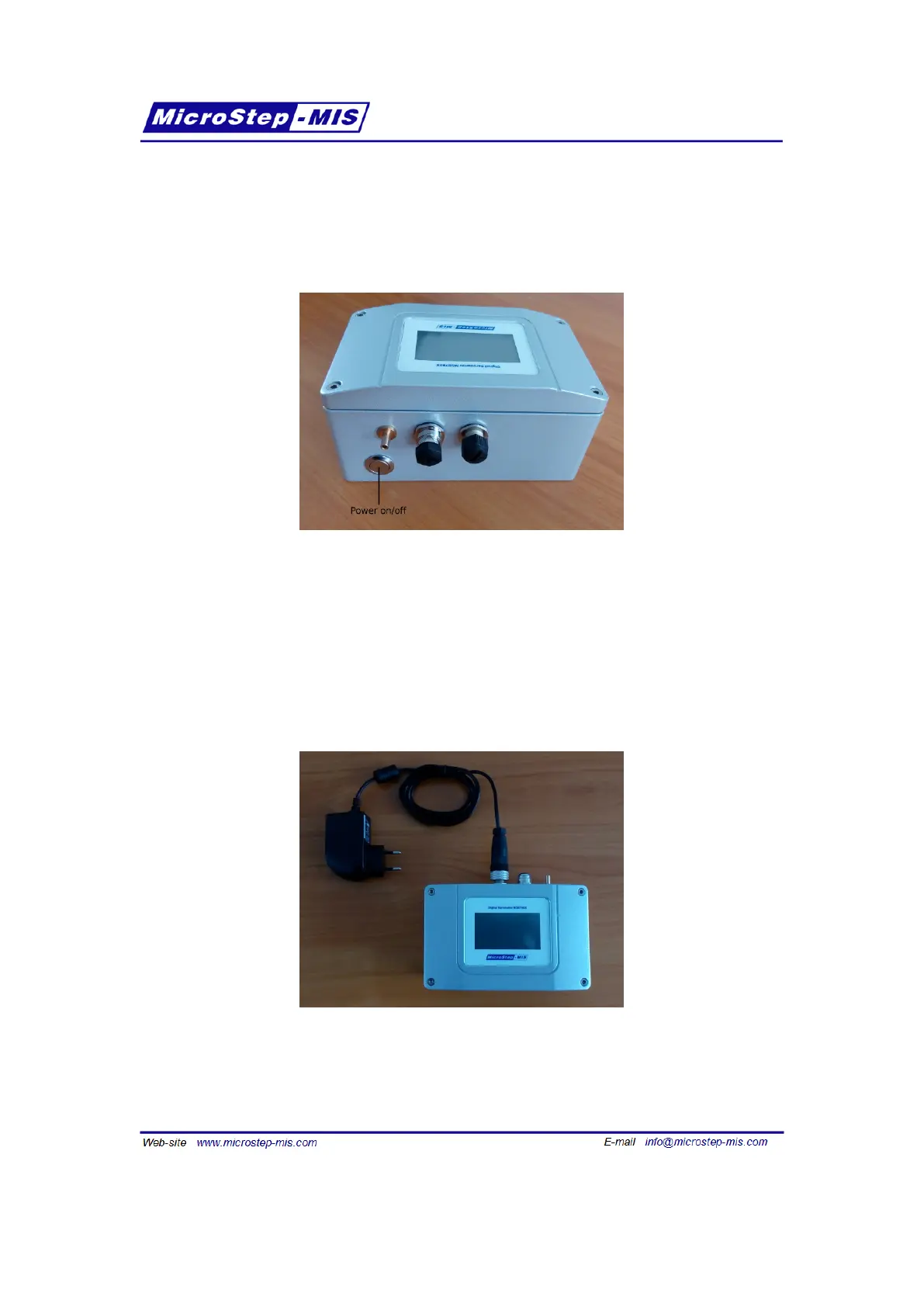

To turn the transfer standard power on/off, use the power button, see the figure 7. If the transfer
standard won’t turn on, please recharge it’s battery (follow section 3.3).
Figure 7: MSB780X transfer standard version - power button
3.3 Recharging the transfer standard battery
The power adapter for recharging the battery is supplied. To recharge the battery, connect
the adapter as per the figure 8 and plug the adapter to the wall socket. The charging will be
completed within 3 hours. The ambient temperature must be within 0 to 50
◦
C, otherwise the
charging will not start.
Figure 8: Connection of the charger to the transfer standard
It is also possible to recharge the battery from the cigarette lighter receptacle using a dedicated
cable. See figure 9.
19
