MSB780(X) - User’s Guide
3.1 Connecting the external probe to the transfer standard
When the relative humidity and temperature measurements are to be done, the external RHT175
probe must be connected. Please follow the figure 5. Use the dedicated cable with connectors.
Always turn the metal part of the connector when connecting or disconnecting.

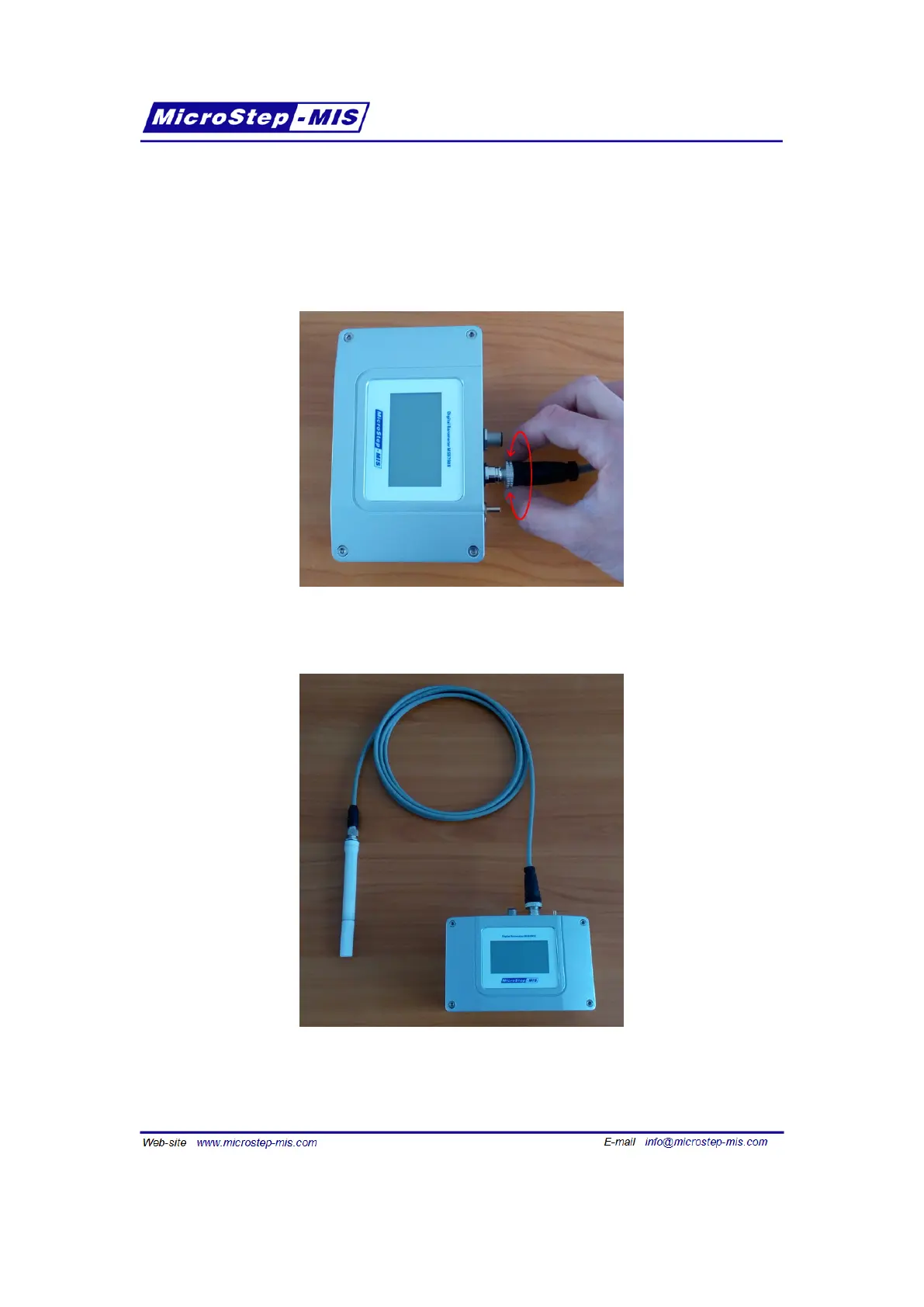

Figure 5: Connecting external RH/t probe to the transfer standard
The transfer standard with the external RHT175 probe connected is shown in the picture 6.
Figure 6: Connecting external RH/t probe to the transfer standard
18
