MSB780(X) - User’s Guide

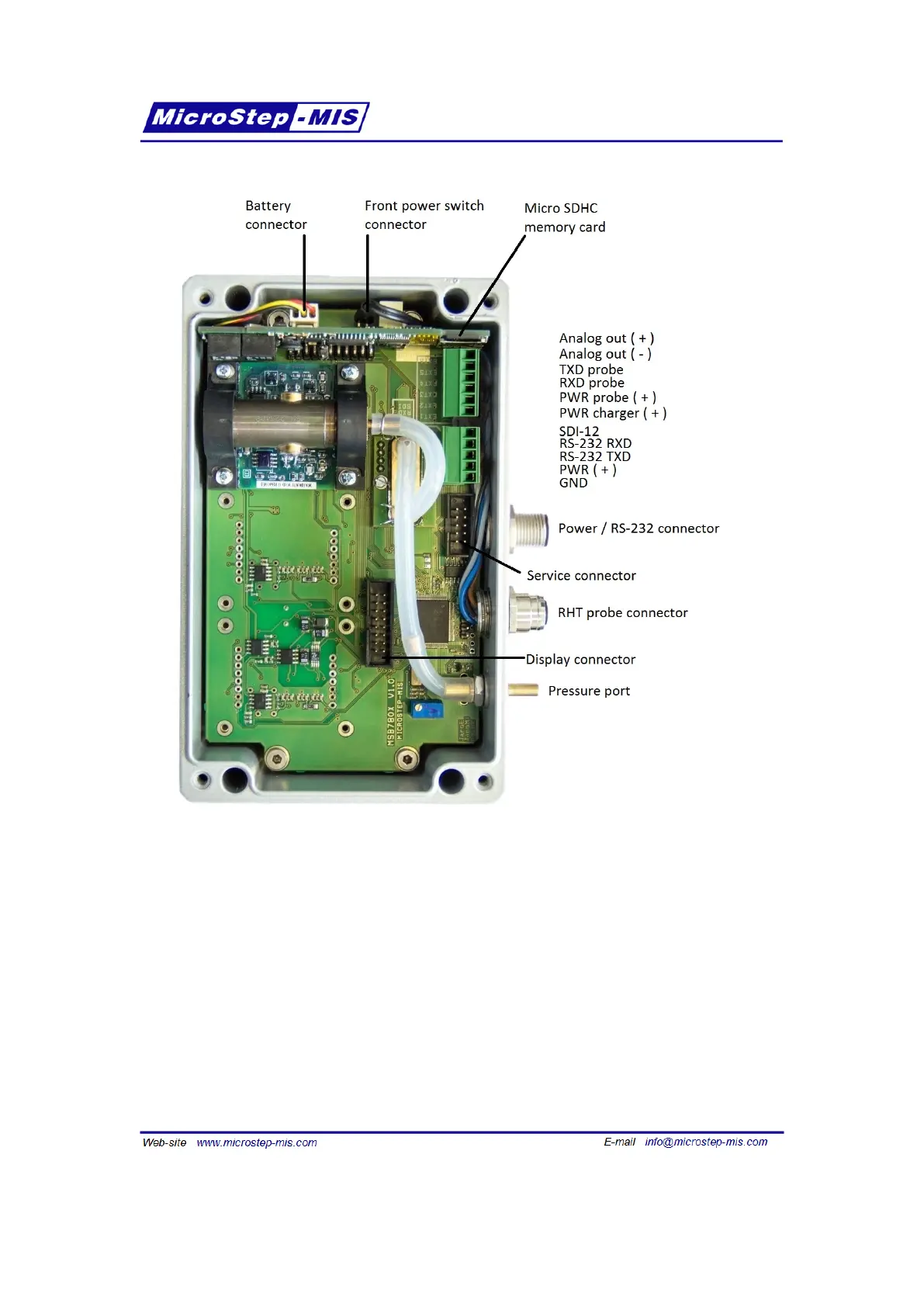

Figure 14: Terminals of the MSB780X Transfer Standard
3.9 Memory card
Memory card is type micro SDHC and used for saving measurement data. Memory card is
inserted with the electrical contacts into inside the MSB780X transfer standard. See figure 15.
