About the tabs in the From section
The From section contains all of the source patch connectors on tabs.
For details of where you can access the tab sheets in the From and To sections from,
see “Navigating to the Patching screen” on page 64.
Stage I/O tab
The Stage I/O tab (see Figure 10, “The AES50 Device Configuration window,” on
page 72) contains the devices fitted in the Stage rack (see “System components
(standard supply)” on page 8).
For information on what devices can be fitted in the I/O rack, see “About the devices on
the stage and FOH I/O tabs” on page 64.

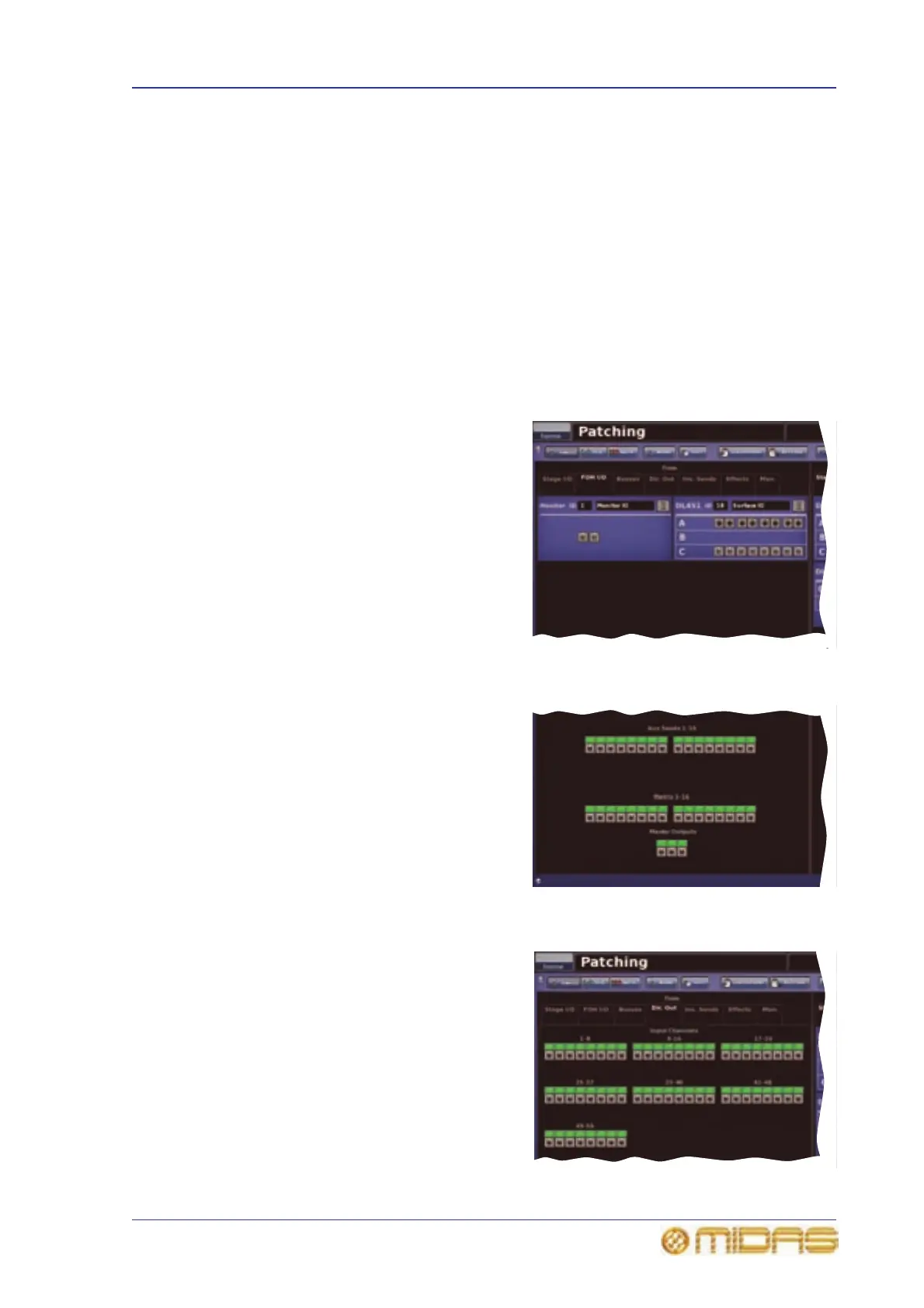

FOH I/O tab
The FOH I/O tab contains the devices
fitted in the FOH rack (see “System
components (standard supply)” on page 8).
For information on what devices can be
fitted in the I/O rack, see “About the
devices on the stage and FOH I/O tabs” on
page 64.
Busses tab
The Busses tab allows routing from the
auxes, matrices and master outputs.
Dir. Out (Direct Out) tab
The Dir. Out (Direct Out) tab allows you to
patch any of the 56 input channels
internally to, for example, an effect, or to
provide a way out of the PRO6 Control
Centre via a line I/O unit.
