% Insulin Remaining
Time (hours)

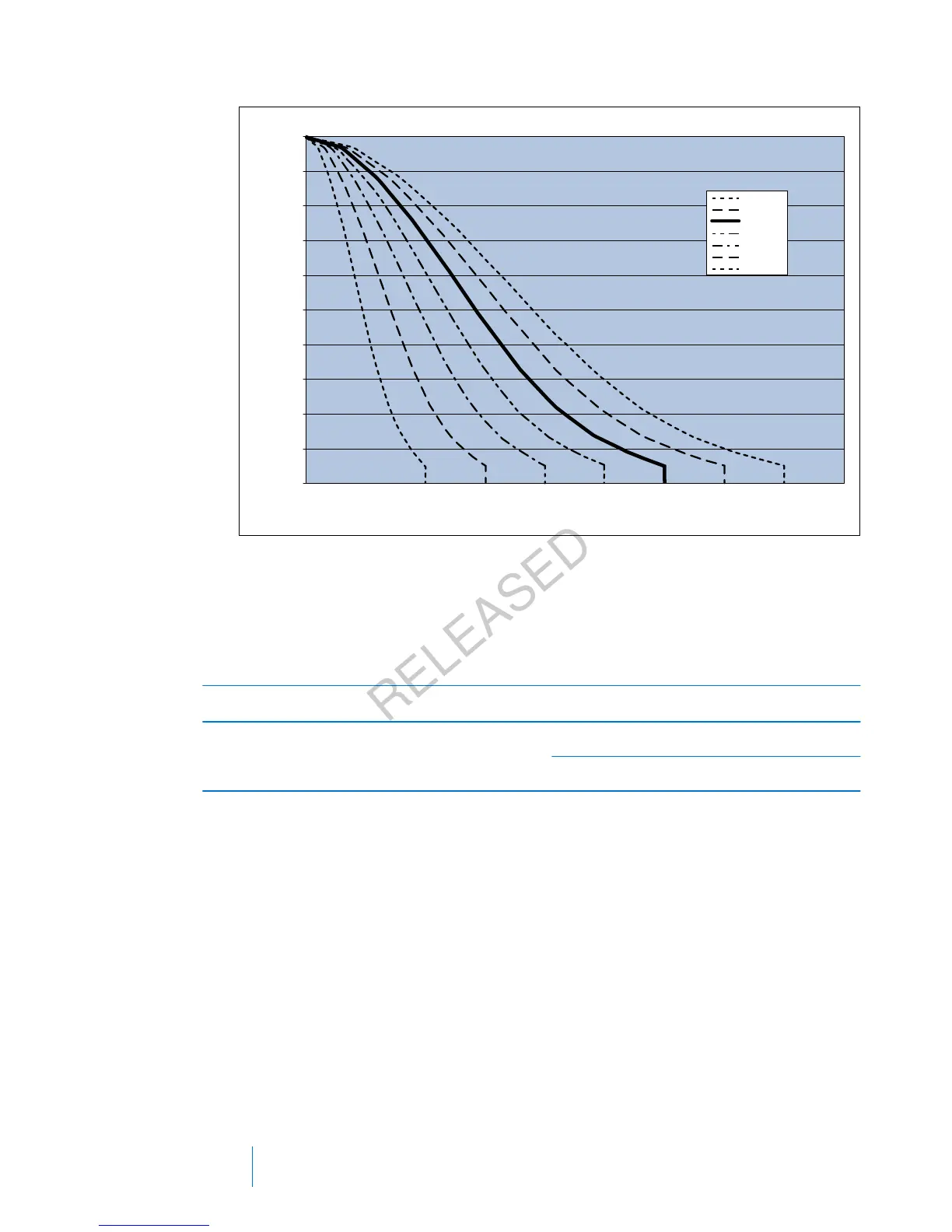

Active Insulin Curve
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0123456 978
8 Hour
7 Hour
6 Hour
5 Hour
4 Hour
3 Hour
2 Hour
Graph adapted from Mudaliar and colleagues, Diabetes Care, Volume 22,
Number 9, Sept. 1999, page 1501.
Carb ratios
Maximum ratio settings Range
8
1 to 200 grams/unit
0.075 to 15 units/exch
Delivery accuracy
• Delivery accuracy for basal rate is ±5%.
Delivery accuracy for bolus volumes < 0.1 unit is ±20% and delivery accuracy
for bolus volumes ≥ 0.1 unit is ±5%.
• All Normal boluses are delivered within 50 minutes ±3 seconds at Standard
rate (75 units, at 1.5 units per minute), and within 5 minutes ±3 seconds at
Quick rate (75 units, at 15 units per minute).
• The maximum infusion pressure generated and the occlusion threshold
pressure is 86.12 kPa (12.49 psi). The bolus volume generated is 0.01225 mL.
254 Chapter 15
MP6025957-024 / A
