9. Commissioning
MiR200 User Guide (en) 10/2020 - v.3.1 ©Copyright 2017-2020: Mobile Industrial Robots A/S. 99
robot. It consists of a V shape with an interior angle of 120° and sides of 150 mm.

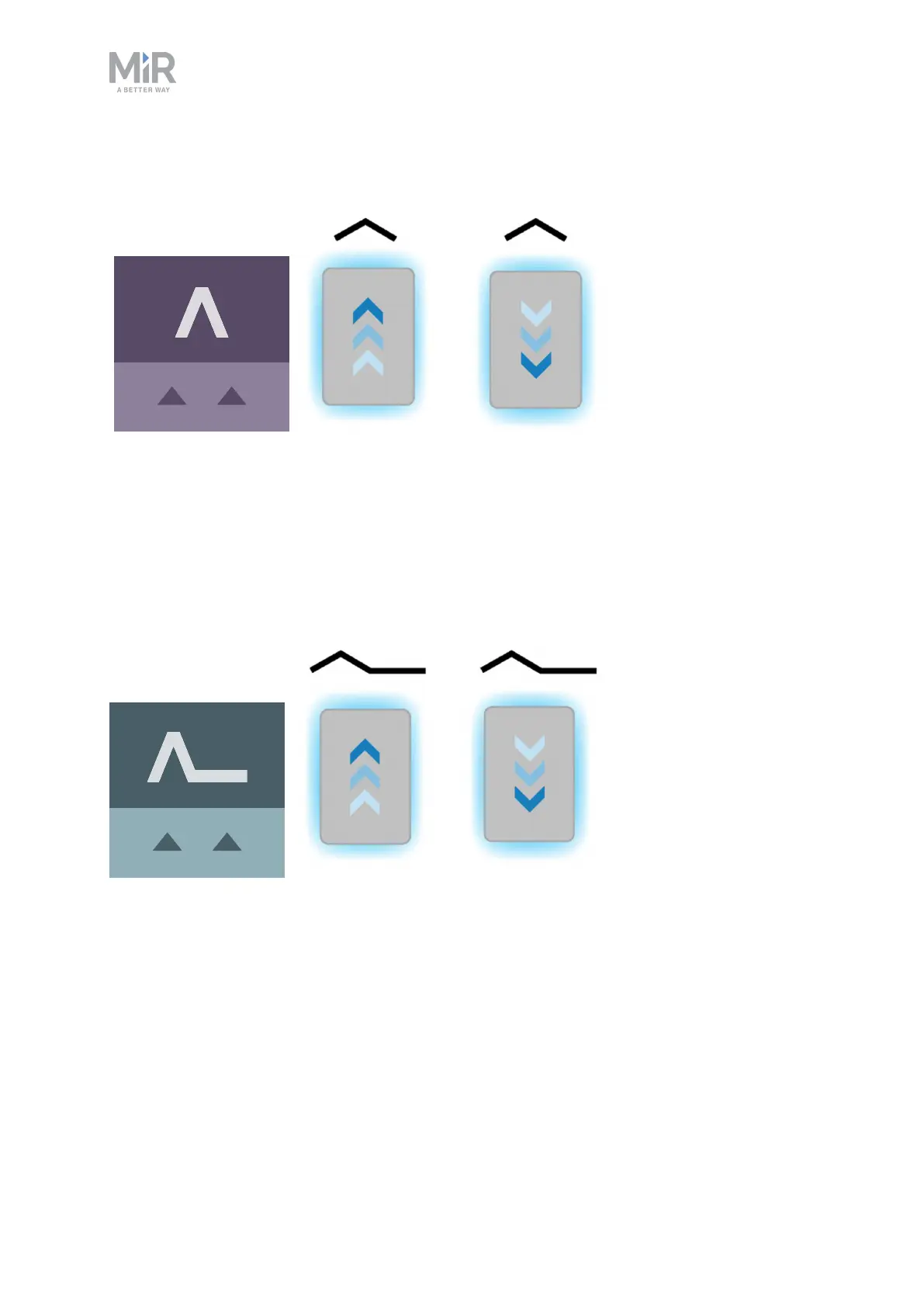

Figure 9.9. The icon used for V-markers in the interface and an illustration of how robots can dock to the
marker.
A VL-marker is a larger marker that enables the robot to dock more accurately than V-
markers. It consists of a V-marker with a 350 mm plate attached to the right of the V shape.
Like V-markers, VL-markers are also designed for the robot to either dock to so its front or
its rear is facing the marker.
Figure 9.10. The icon used for VL-markers in the interface and an illustration of how robots can dock to the
marker.
An L-marker makes it possible for the robot to dock in several different ways and
orientations. Robots can both dock to the inside and outside of an L-marker, and the marker
