Mitel SX-200 - Page 149

LOCKING
MECHANISM-
PIVOT BFIACKET
\
JNC SCREWS
I in. X l/4 in.
SECTION MITL9105/911
O-096-350-NA
EXPOSE THE SYSTEM (SX-100)
MAP350- 400
Issue 3. May 1984
Sheet 3 of 7
8 WOOD SCREWS
l/4 in. X 1 in. LONG

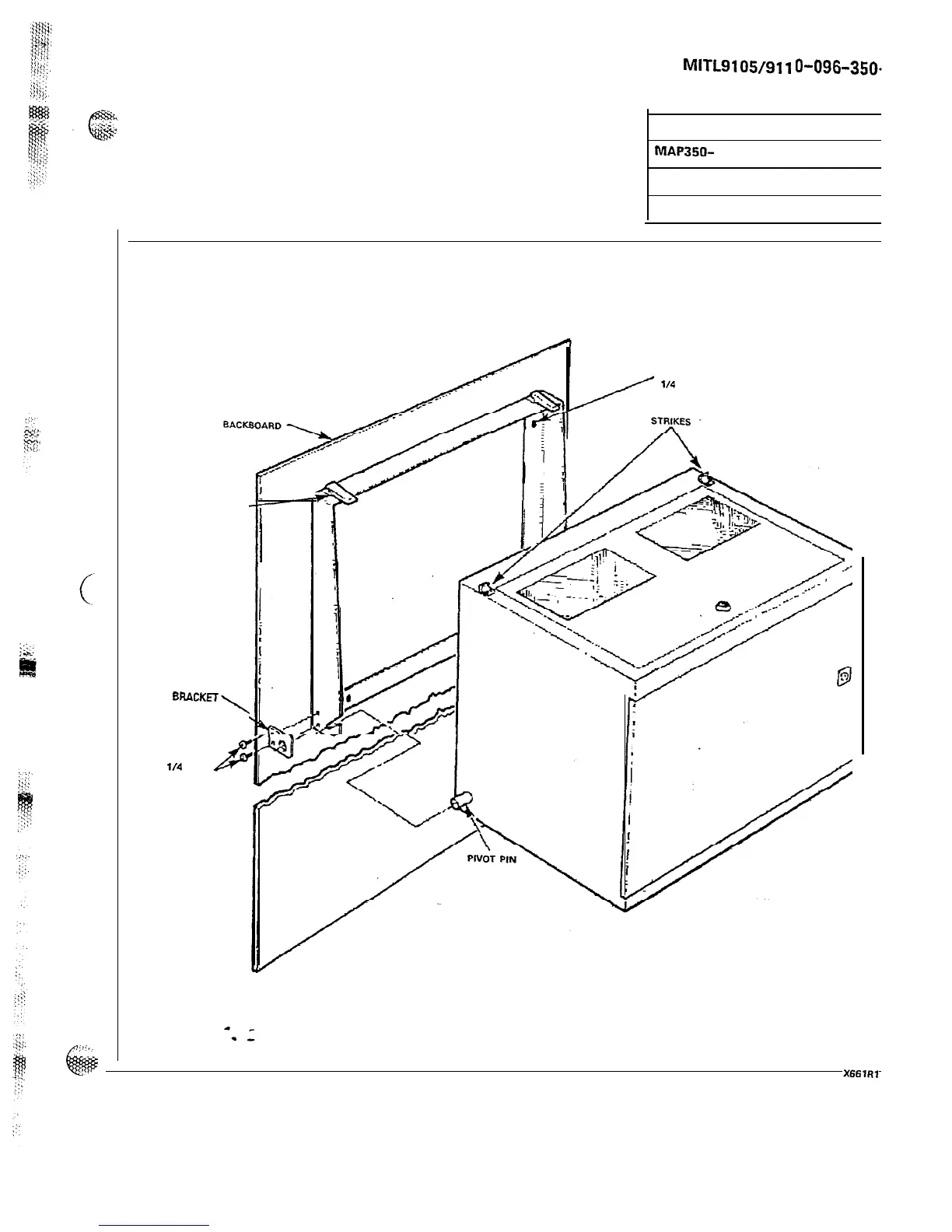

Figure 400-2 Wall-Mounting
Page D-5
