232
8 CONTROL SUB FUNCTIONS
8.3 Functions for Compensating the Control
Precautions during control
• If the movement amount designated by the positioning data is small when the continuous path control is executed, the
output speed may not reach the designated speed.
• The movement direction is not checked during interpolation operation. Therefore, a deceleration stops are not carried out
even if the movement direction changes. (See below) For this reason, the output will suddenly reverse when the reference
axis movement direction changes. To prevent the sudden output reversal, assign not the continuous path control "11", but
the continuous positioning control "01" to the positioning data of the passing point.

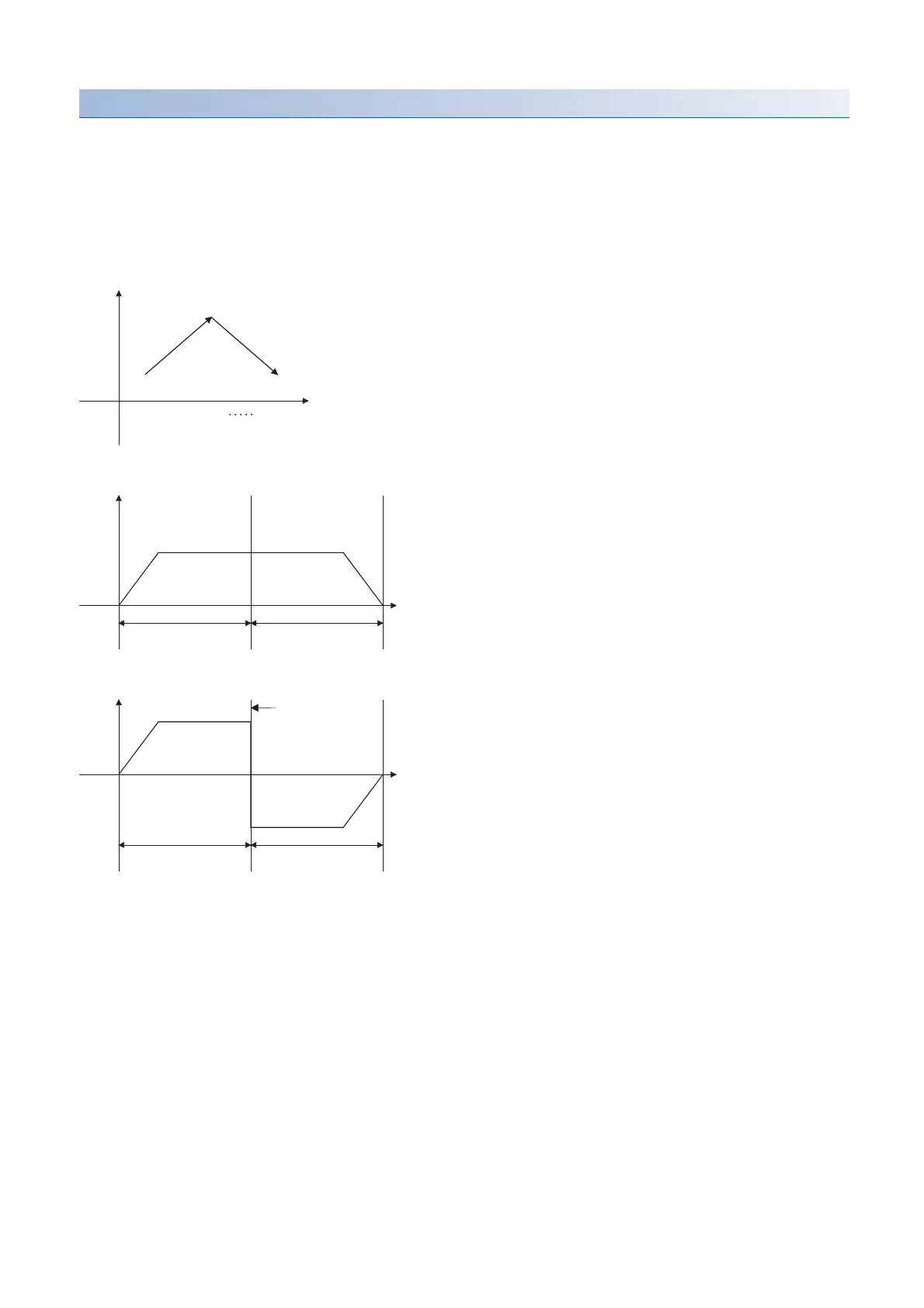

■Positioning by interpolation
■Operation of reference axis
■Operation of partner axis for interpolation
Positioning data No.1 Continuous path control
Partner axis
Reference axis
Positioning
data No.1
Positioning
data No.2
t
Positioning data No.1
Positioning data No.2
V
t
V
Positioning data No.1
Positioning data No.2
Suddenly reverse
direction
To Next Page
