8 CONTROL SUB FUNCTIONS
8.8 Functions Related to Stop
Precautions for control
• In manual control (JOG operation, inching operation, manual pulse generator operation) and speed-torque control, the stop
command processing for deceleration stop function is invalid.
• The stop command processing for deceleration stop function is valid when "0: Normal deceleration stop" is set in "[Pr.37]
Stop group 1 sudden stop selection" to "[Pr.39] Stop group 3 sudden stop selection" as the stopping method for stop cause
occurrence.
• The stop command processing for deceleration stop function is invalid when "1: Sudden stop" is set in "[Pr.37] Stop group 1
sudden stop selection" to "[Pr.39] Stop group 3 sudden stop selection". (A deceleration curve is re-processed starting from
the speed at stop cause occurrence until at a stop, according to the "[Pr.36] Sudden stop deceleration time".) In the position
control (including position control of speed/position changeover control or position/speed changeover control) mode,
positioning may stop immediately depending on the stop cause occurrence timing and "[Pr.36] Sudden stop deceleration
time" setting.
Setting method
To use the "stop command processing for deceleration stop function", set the following control data in a program.
The set data are made valid as soon as they are written to the buffer memory. The PLC ready signal [Y0] is irrelevant.
Refer to the following for the setting details.
Page 504 Control Data
Setting item Setting value Setting details Buffer memory address
[Cd.42] Stop command processing for
deceleration stop selection
Set the stop command processing for deceleration stop
function.
0: Deceleration curve re-processing
1: Deceleration curve continuation
5907

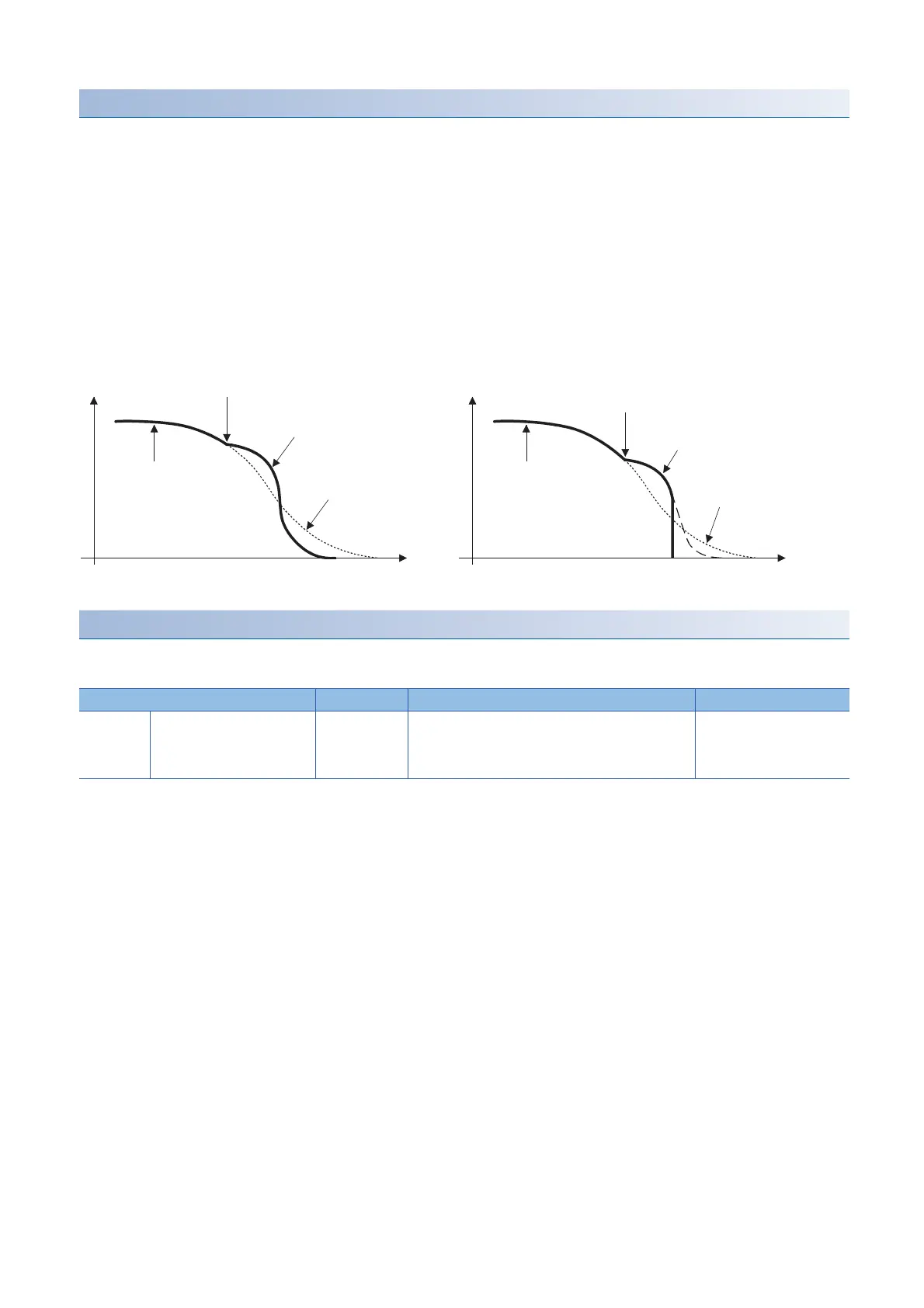

Stop cause occurrence
(Sudden stop cause)
Deceleration curve according
to sudden stop deceleration time
Deceleration curve when
stop cause does not occur
(Immediate stop at the specified positioning address)
t
V
Deceleration stop
processing (automatic
deceleration) start
Stop cause occurrence
(Sudden stop cause)
Deceleration curve according
to sudden stop deceleration time
Deceleration curve when
stop cause does not occur
(Sudden stop in front of the specified positioning address)
t
V
Deceleration stop
processing (automatic
deceleration) start
