FX Series Programmable Controlers Applied Instructions 5
5-202

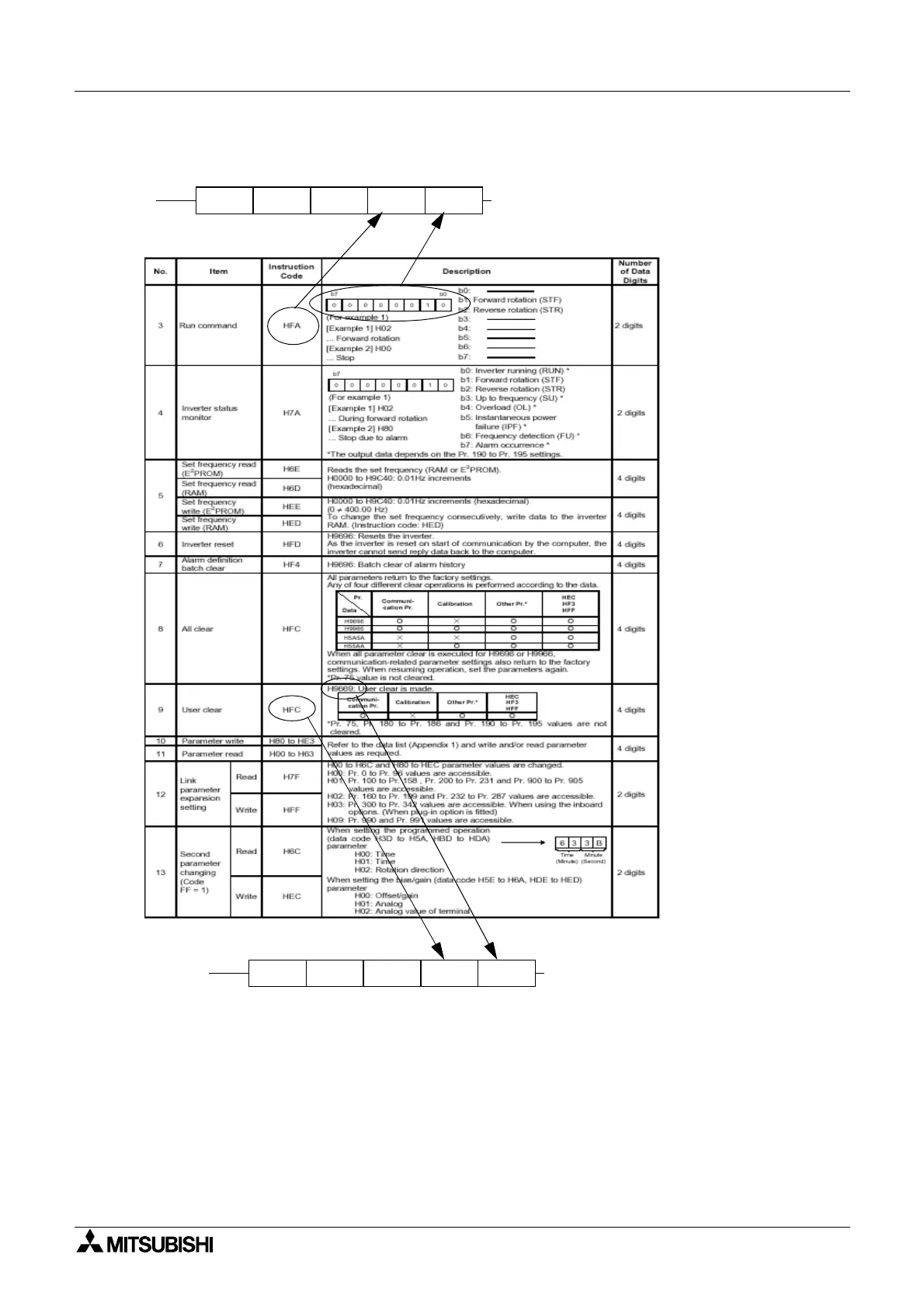

The following example writes the Run Command parameters to Inverter Station #1.
For2secondsafterthe
reset instruction is
transmitted, the inverter
does not accept
communication.
As this period of time is
controlled by the PLC,
the sequence does not
need to be taken into
consideration
Use EXTR K12/K13 to
read and write
parameters
Before parameter read/
write, link parameters are
automatically re-written
If a second parameter is
present, it is
automatically re-written
Note:
As parameters 9,10 11 and 12 are used for EXTR K12/13, DO NOT use them with EXTR K11/
K12.
EXTR K11 K1 HFA K2M64
EXTR K11 K1 HFC K9696
To Next Page
