FX Series Programmable Controllers Points Of Technique 10
10-17

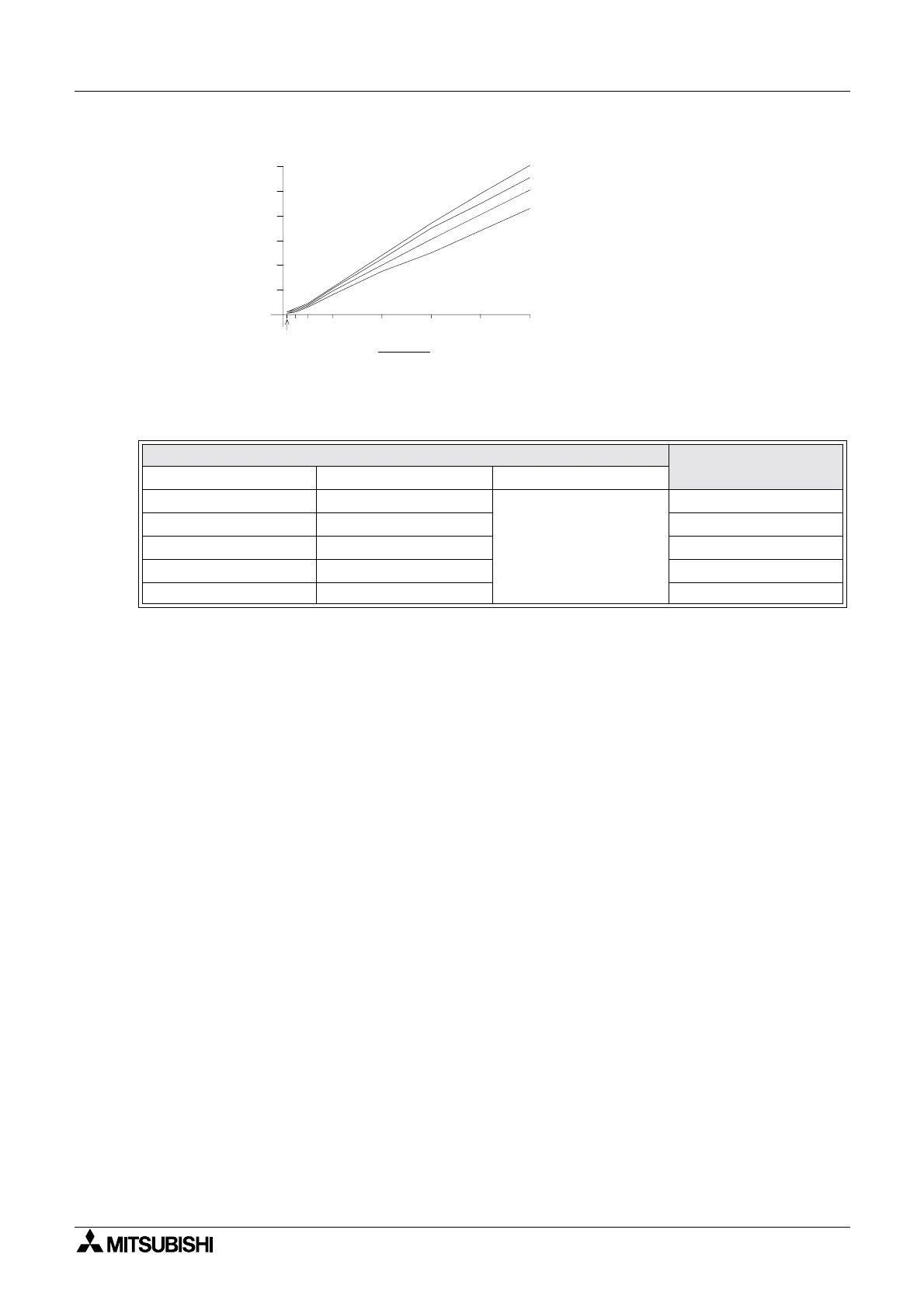

The duration of the T0, time base also affects the ripple voltage. This can be clearly seen in the
nextsetoftestdata:
The behavior of the Sink switched circuit detailed above will be similar to that of the Source
switched circuit detailed earlier.
PWM parameter setting
Measured ripple
voltage
tT
0 t/T0
100 200
0.5
1.27V
50 100 668mV
25 50 350mV
10 20 154mV
510 82mV
20 3010
52.5
1.0
40 50
t
2.0
4.0
6.0
8.0
10.0
12.0
e (volts)
L1
L2
L3
L4
Tested load impedance
(e.g. inverter impedance)
L1 - 100 k
L2 - 10 k
L3 - 4.7 k
L4 - 2.2 k

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
