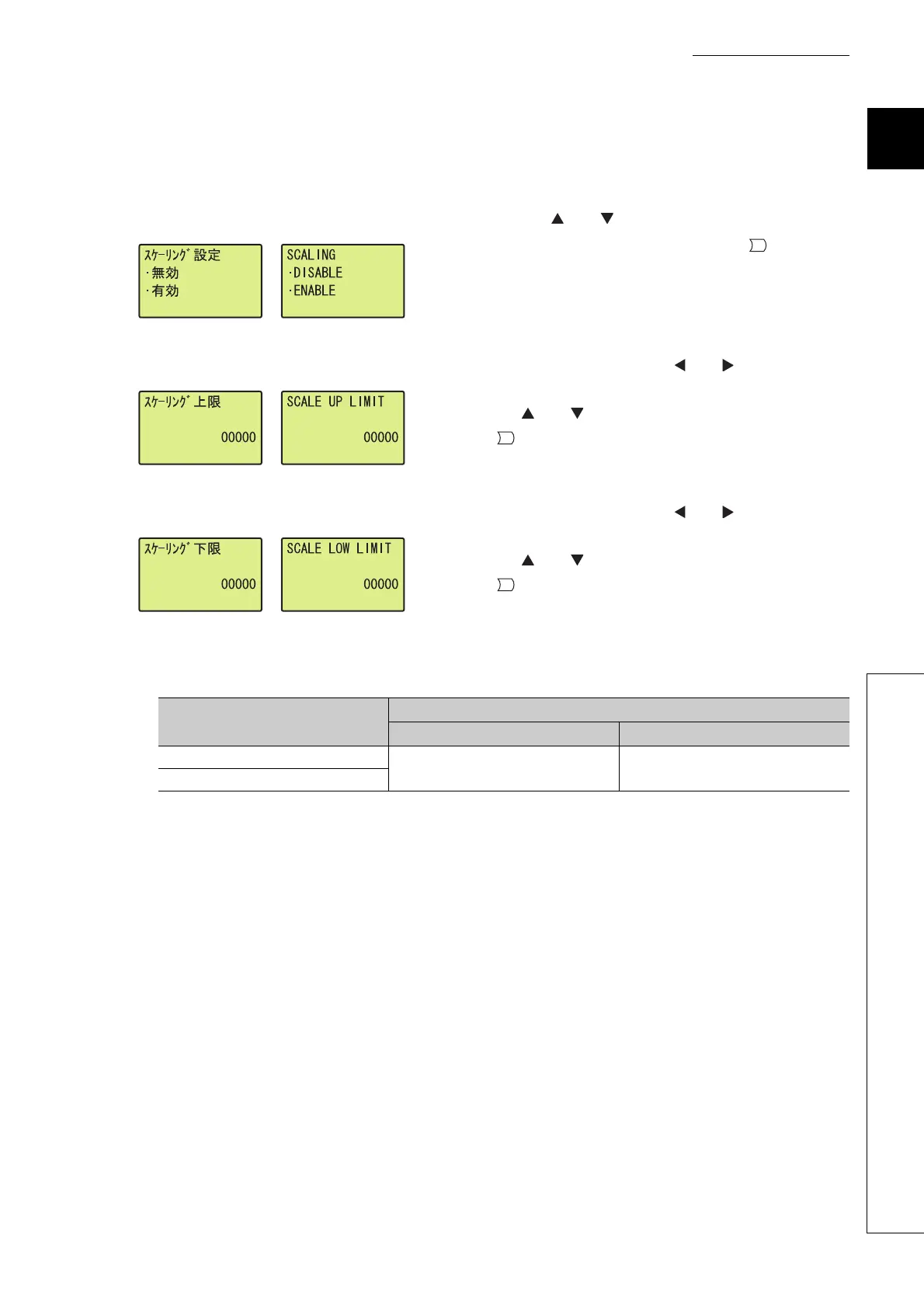

9.3 List of Setting Value Change Screens
(6) Scaling setting
Select "DISABLE" or "ENABLE" in the "SCALING" screen.
Table of input items
"SCALING" screen
1. Use the and buttons to select "DISABLE" or
"ENABLE", and then confirm with the button. (If
you selected "ENABLE", follow the rest of the
procedure.)
↓
"SCALE UP LIMIT" screen
2. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
↓
"SCALE LOW LIMIT" screen
3. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
Input item
Input range
Input upper limit Input lower limit
SCALE UP LIMIT
32000 -32000
SCALE LOW LIMIT
OK
OK
OK
To Next Page
