PISTON AND CONNECTION ROD ENGINE MAIN PARTS
Description Standard
Pin press-fitting force
(at a normal temperature)
1000 ±500 kg
[2205 ±1102 lb]
Table 30 Pin press-fitting force
Guide “LA” (92 l): for L2A, L3A
Guide “LC” (89.5 l): for L2C, L2E, L3C, L3E
Tool body
Identification mark
Connecting rod
Push rod
Pressing
Piston pin
Base plug
Guide
Piston
FRONT mark (arrow)

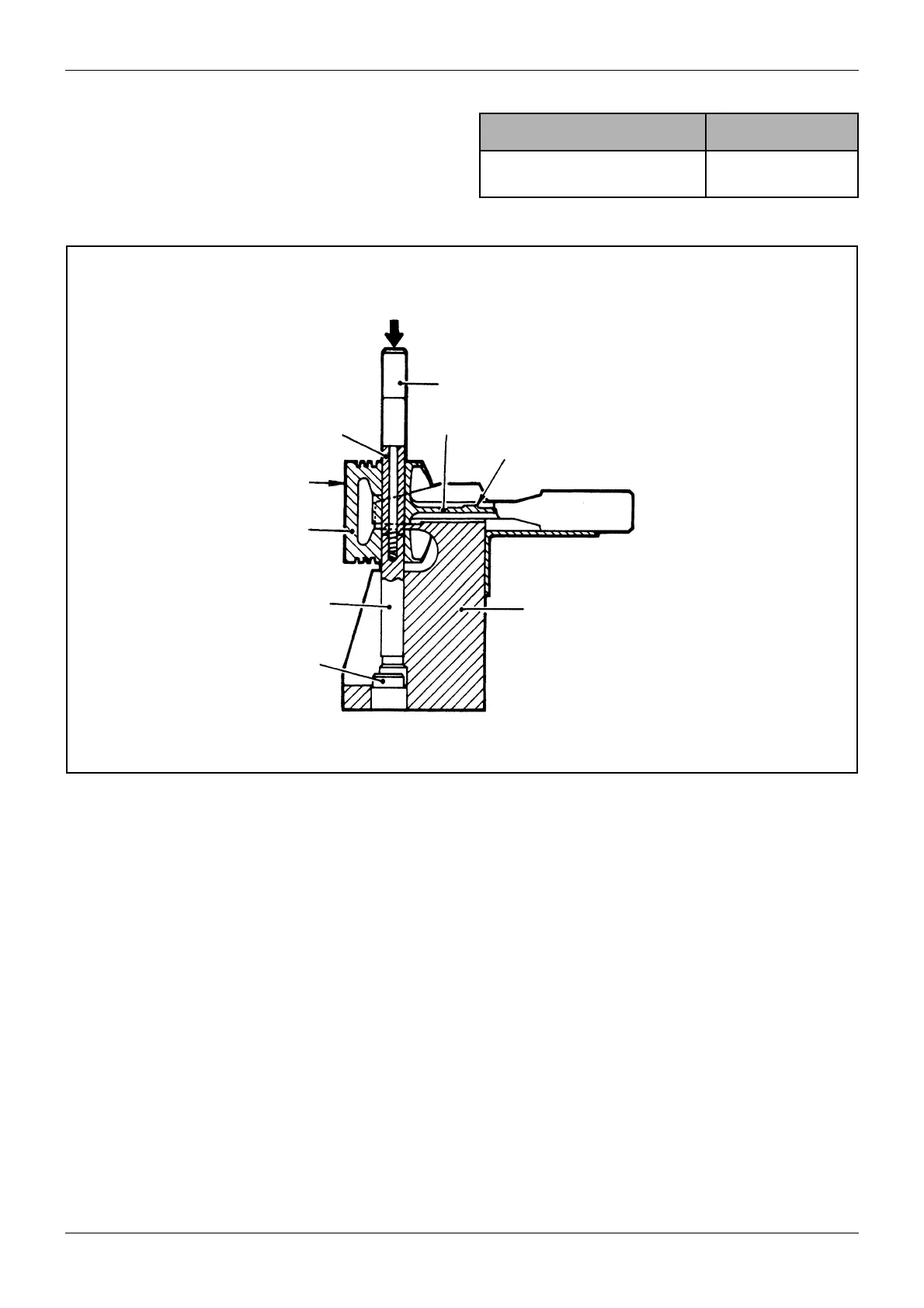

Figure 73 Reassembling piston pin

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
