4 - 2 4 - 2
MELSEC-Q
4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION
4.2 Procedure before Starting the Operation

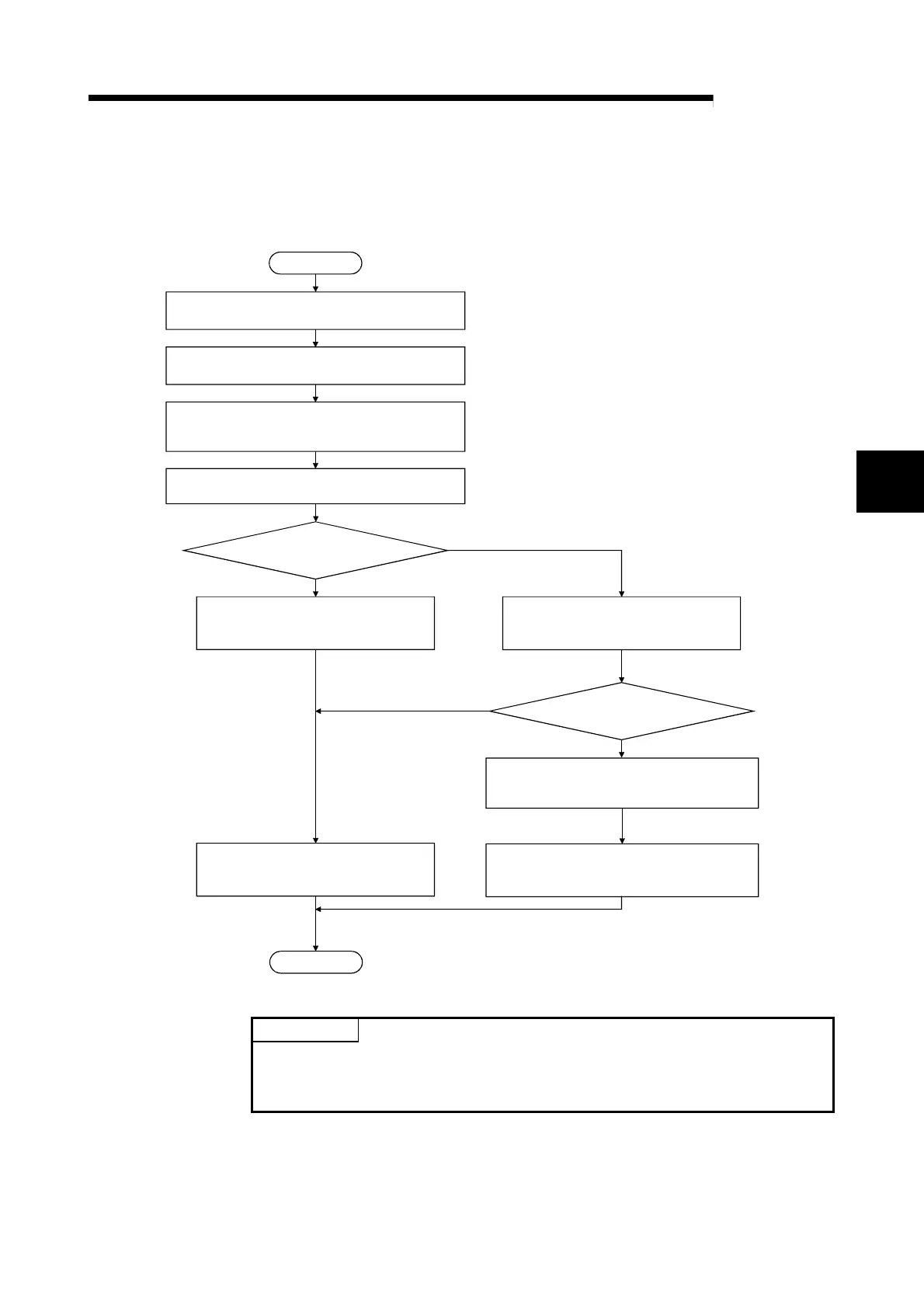

The figure below shows the steps that should be followed before starting the Q62HLC
operation.
Perform the initial setting using the GX
Configurator-TC (see Section 5.4).
Start
Module mounting
Mount the Q62HLC in the specified slot.
Wiring
Wire the Q62HLC.
Perform settings using the GX Developer
(see Section 4.5)
Intelligent function module switch setting
Use the GX Configurator-TC?
Yes
No
Initial setting
Using the FROM/TO commands, create
a sequence program for writing initial values.
Initial setting
Perform auto
refresh setting?
No
Yes
Auto refresh setting
Perform the auto refresh setting using
the GX Configurator-TC (see Section 5.5).
Programming
Create and check a program without using the
FROM/TO commands.
Programming
Create and check a program using the
FROM/TO commands.
Operation
Execution of auto tuning
Perform auto tuning to set PID constants.
POINT
When executing temperature control as a temperature sensor, perform warmup
operation about 5 minutes before starting operation to make temperature
compensation properly.
4

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
