3 SPECIFICATIONS
3.3 Sampling Period and Control Output Period
(1) Sampling period
(a) This is the time taken from the channel (CHn) where PID operations are
currently executed until restart of PID operations of the current channel
(CHn), and it is fixed as 25ms regardless of the number of used channels.

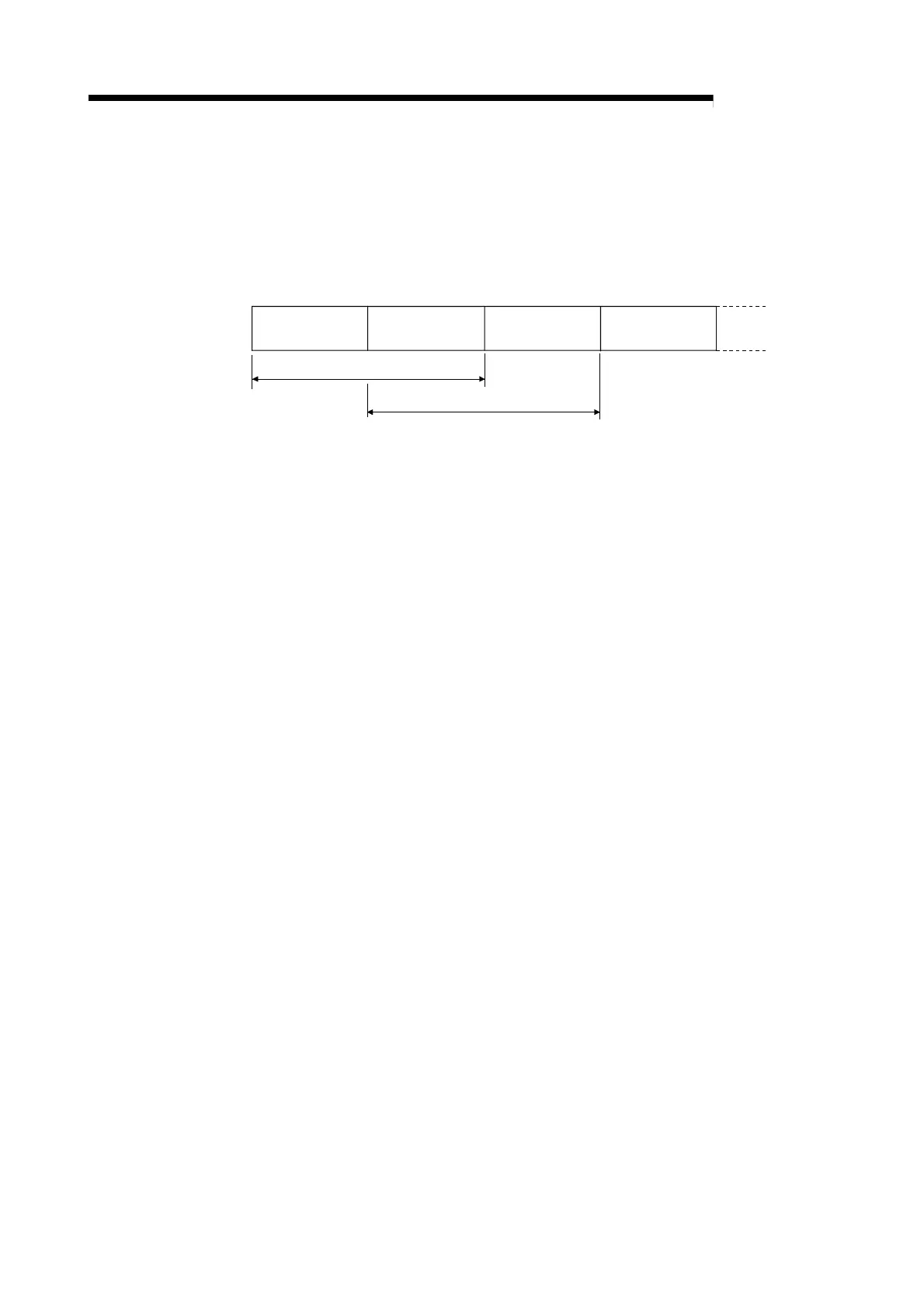

25ms (Sampling Period)
25ms (Sampling Period)
CH1 PID
Operation
CH2 PID
Operation
CH1 PID
Operation
CH2 PID
Operation

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
