5 UTILITY PACKAGE (GX Configurator-TC)
5.3.2 Operation overview

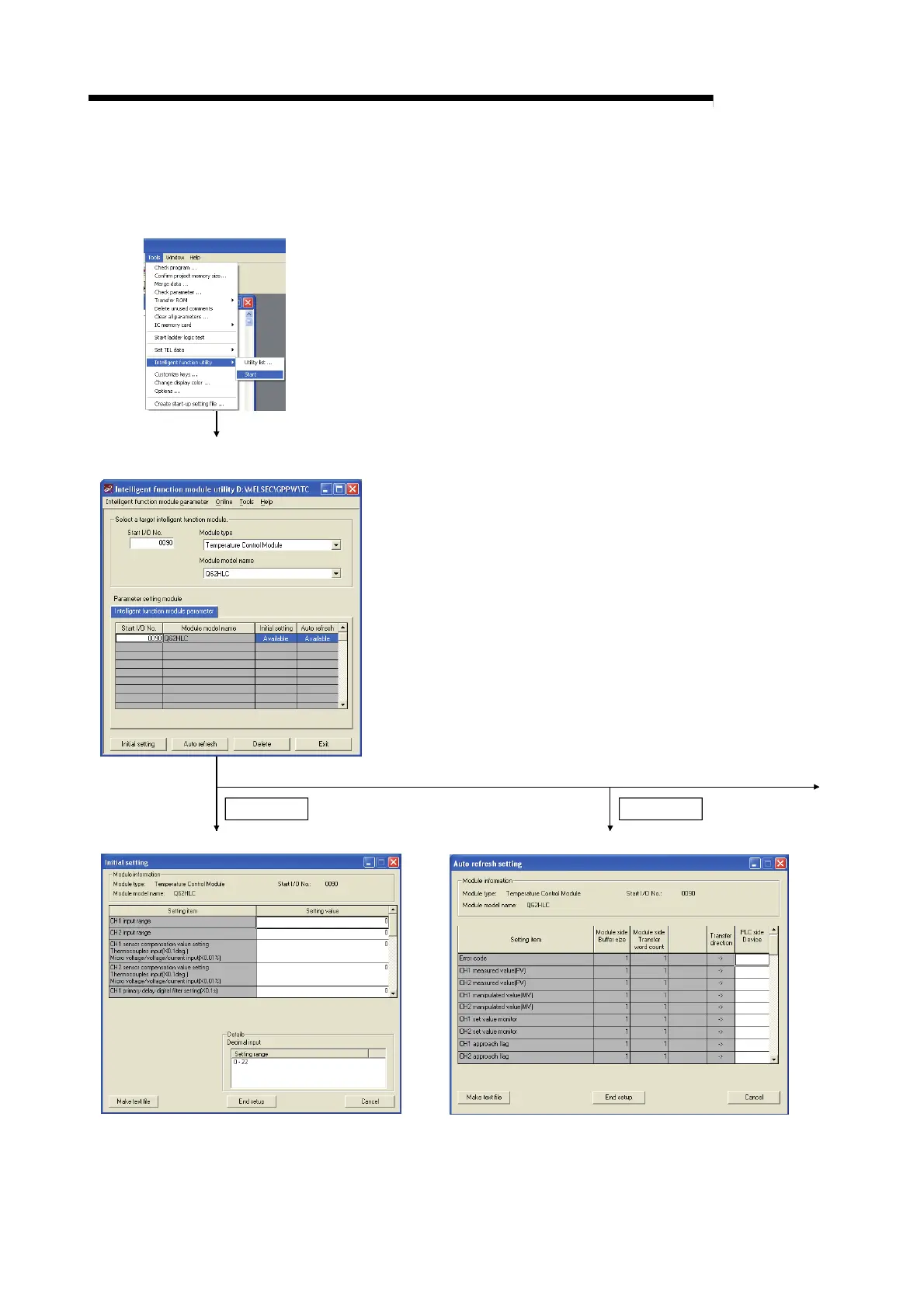

GX Developer screen
[Tools] – [Intelligent function utility] – [Start]
Initial setting screen
Initial setting
Auto refresh setting screen
1)
Auto refresh
Screen for selecting a target
intelligent function module
Enter "Start I/O No.", and select
"Module type" and "Module model name".
Refer to Section 5.3.3.
Refer to Section 5.5.
Refer to Section 5.4.

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
