6 PROGRAMMING
6.2 For Use in Normal System Configuration
System configuration for program explanation
(1) System configuration
X00 to X3F
Y40 to Y7F
X/Y80 to X/Y8F
Power supply
module
QCPU
QX42
QY42P
Q62HLC
(2) Program conditions
The programs are written to control the temperature measured by the
thermocouple (K: -200 to 1372
) connected to channel 1.
• According to input signals, normal control/program control/manual control 2
(simplified analog I/O)/cascade control is executed.
• They include write data error code reading and error code resetting programs.

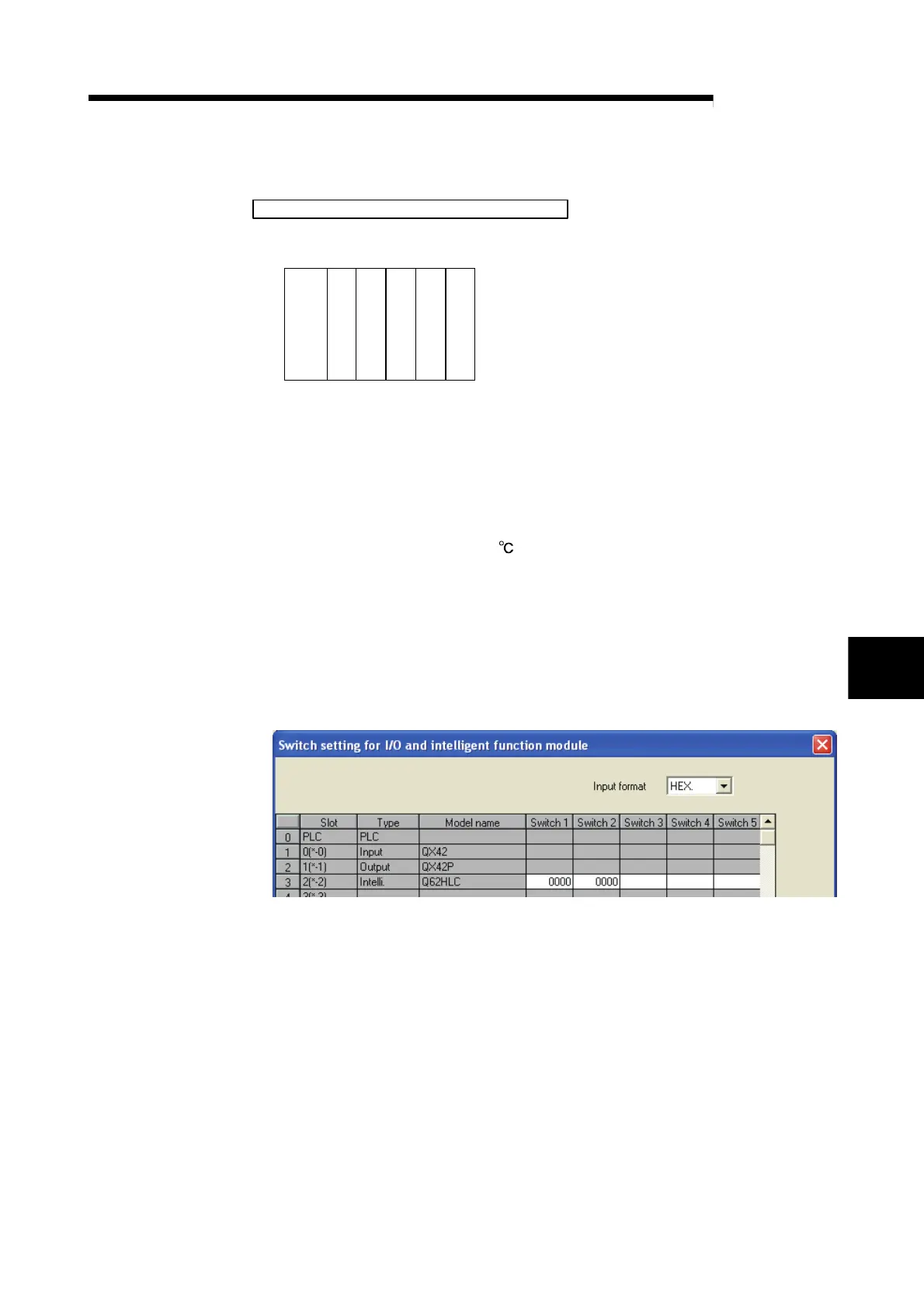

(3) Intelligent function module switch setting
Set the intelligent function module switch setting as follows.
For details of the intelligent function module switch setting, refer to Section 4.5.
6

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
