2 SYSTEM CONFIGURATION
2.2 About Use of the Q62HLC with the Q12PRH/Q25PRHCPU
Here, use of the Q62HLC with the Q12PRH/Q25PRHCPU is explained.
(1) GX Configurator-TC connection
GX Configurator-TC cannot be used when accessing the Q12PRH/Q25PRHCPU
via an intelligent function module on an extension base unit from GX Developer.

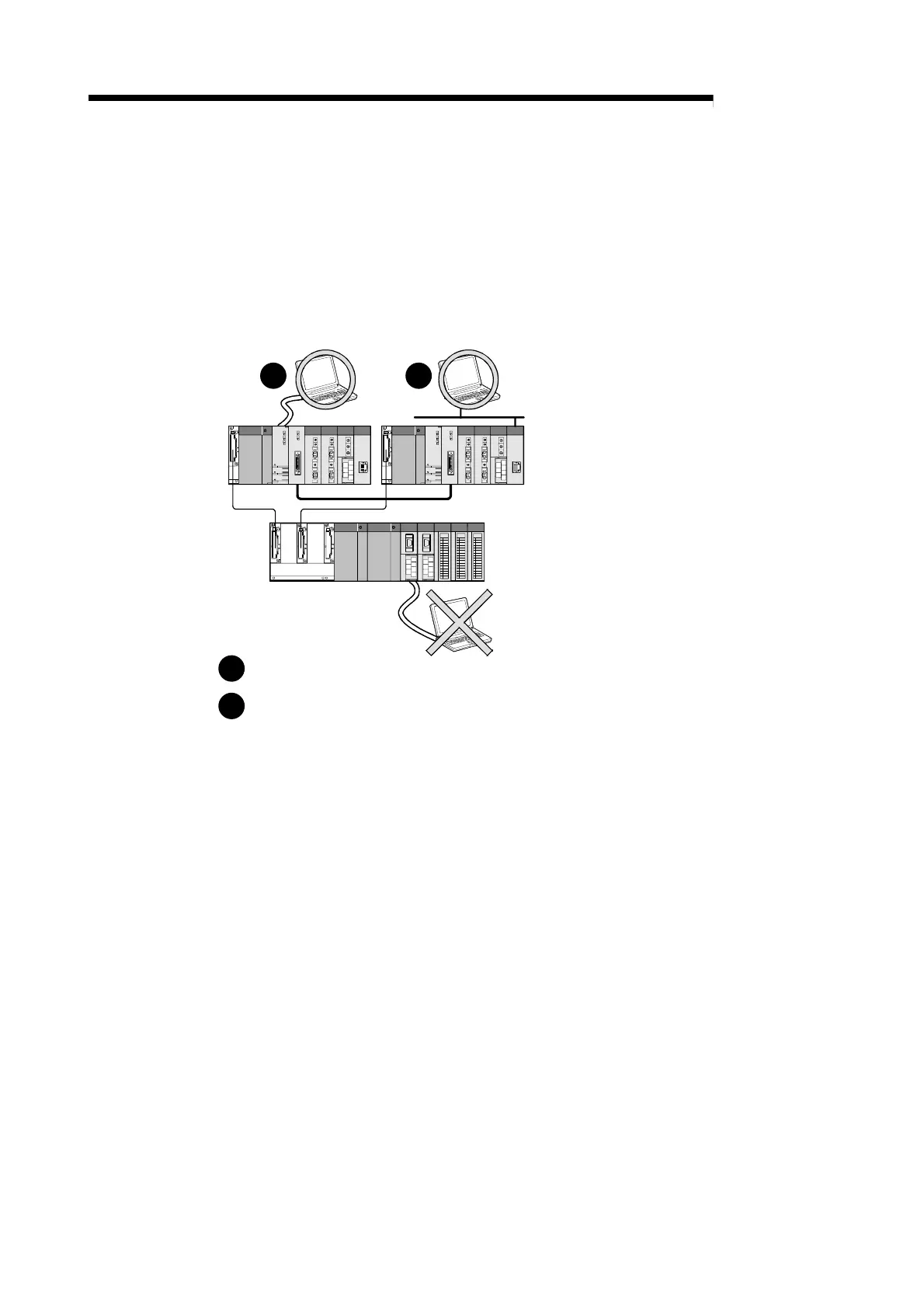

Connect a personal computer with a communication path indicated below.
2
1
Main base unit
Extension base unit
1 2
Direct connection to the CPU
Connection through an intelligent function module on the main base unit
(Through Ethernet module, MELSECNET/H module, or CC-Link module)
(GX Configurator-TC cannot be used.)
