7 - 4 7 - 4
MELSEC-Q
7 ONLINE MODULE CHANGE
7.3 Online Module Change Procedure
The online module change procedure is explained separately for the case where GX
Configurator-TC was used for initial setting and for the case where a sequence
program was used for initial setting.
7.3.1 GX Configurator-TC was used for initial setting

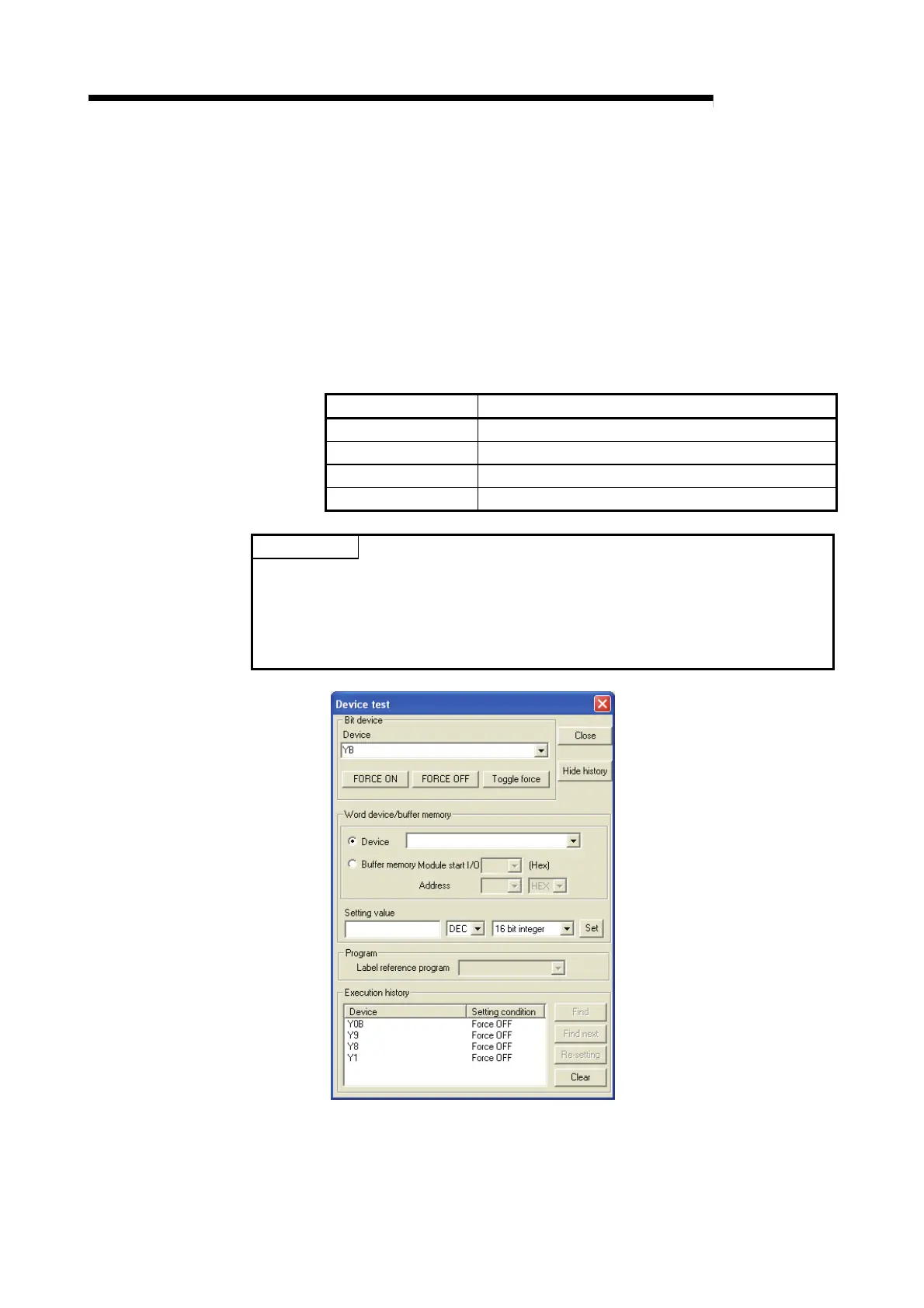

(1) Operation stop
(a) Turn off the following output signals to stop module operation.
Device No. Signal name
Yn1 Setting/operation mode command
Yn8 FeRAM backup command
Yn9 Default setting registration command
YnB Setting change command
POINT
Control may not stop if only the setting/operation mode command (Yn1) is turned off.
To stop control without fail, set the PID continuation flag (buffer memory address:
169) for 0 (stop) and turn off the setting/operation mode command (Yn1).
To confirm that control has stopped, make sure that the setting/operation mode
status (Xn1) is off.
