2 SYSTEM CONFIGURATION
2 SYSTEM CONFIGURATION
This chapter explains the system configuration of the Q62HLC.
2.1 Applicable Systems
This section describes the applicable systems.
(1) Applicable modules and base units, and No. of modules
(a) When mounted with a CPU module
The table below shows the CPU modules and base units applicable to the
Q62HLC and quantities for each CPU model.
Depending on the combination with other modules or the number of
mounted modules, power supply capacity may be insufficient.
Pay attention to the power supply capacity before mounting modules, and if
the power supply capacity is insufficient, change the combination of the
modules.

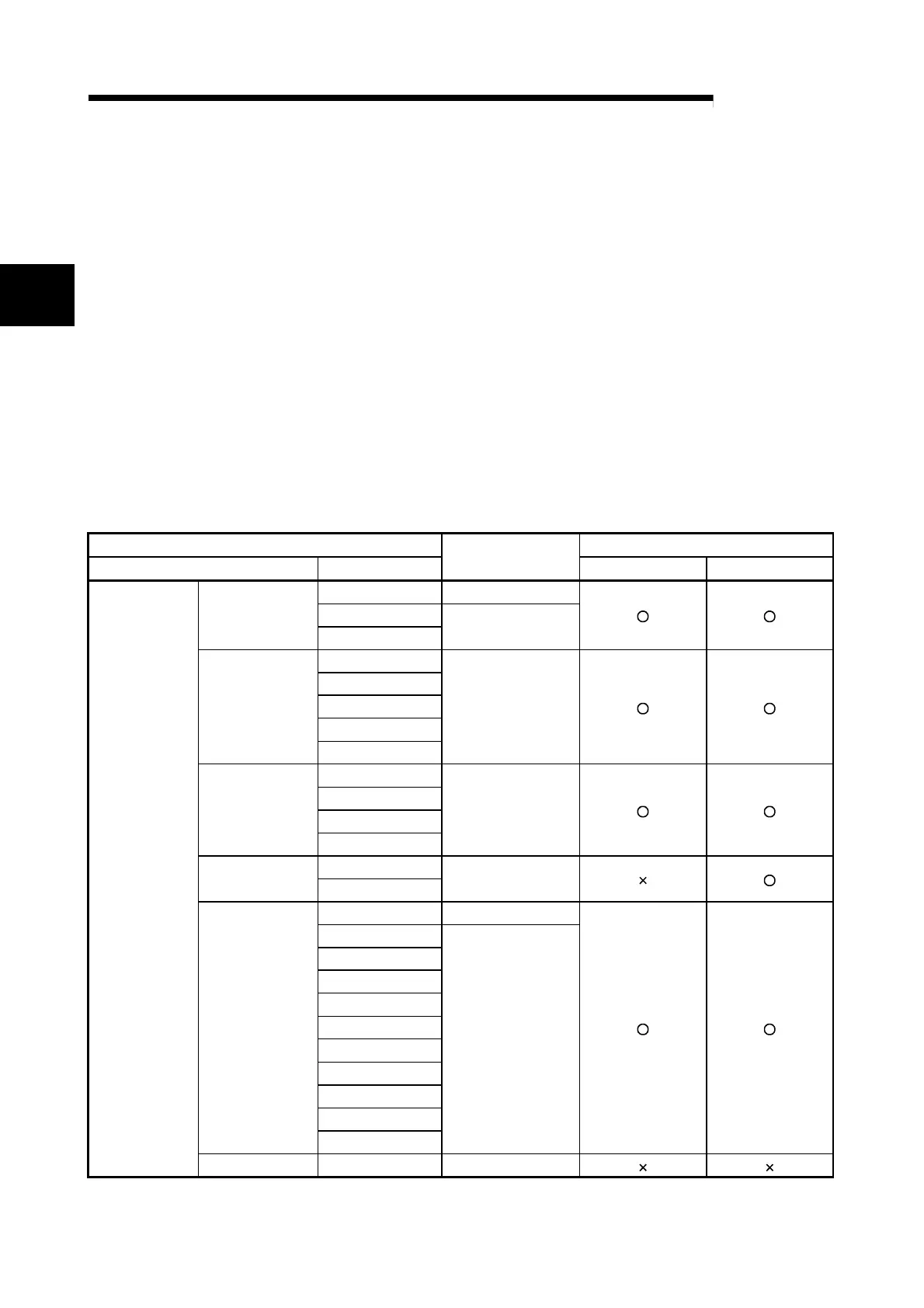

Applicable CPU module Base unit
*2
CPU type CPU model
No. of modules
*1
Main base unit Extension base unit
Q00JCPU Up to 16
Q00CPU
Basic model
QCPU
Q01CPU
Up to 24
Q02CPU
Q02HCPU
Q06HCPU
Q12HCPU
High Performance
model QCPU
Q25HCPU
Up to 64
Q02PHCPU
Q06PHCPU
Q12PHCPU
Process CPU
Q25PHCPU
Up to 64
Q12PRHCPU
Redundant CPU
Q25PRHCPU
Up to 53
Q02UCPU Up to 36
Q03UDCPU
Q04UDHCPU
Q06UDHCPU
Q13UDHCPU
Q26UDHCPU
Q03UDECPU
Q04UDEHCPU
Q06UDEHCPU
Q13UDEHCPU
Universal model
QCPU
Q26UDEHCPU
Up to 64
Programmable
controller CPU
Safety CPU QS001CPU N/A
2

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
