Mitsubishi Q Series - Program Control Function

3 - 24 3 - 24
MELSEC-Q
3 SPECIFICATIONS
3.2.12 Program control function
(1) Program control function
The Q62HLC performs PID control changing the set value (SV), according to
the schedule set by users.
Program control function performs the control according to the setting
description of the following items.
Setting item Description
Control data Sets program pattern to be executed, starting method of set value at
the start of control, and time scale of segment executing time.
Program pattern data Sets segments up to 16 executing continuously PID control. Set
value, execution time and zone No. to be used are set for each
segment.
Zone PID data Divides input range into 8 zones, and then sets PID constants and
control response parameters for each zone.

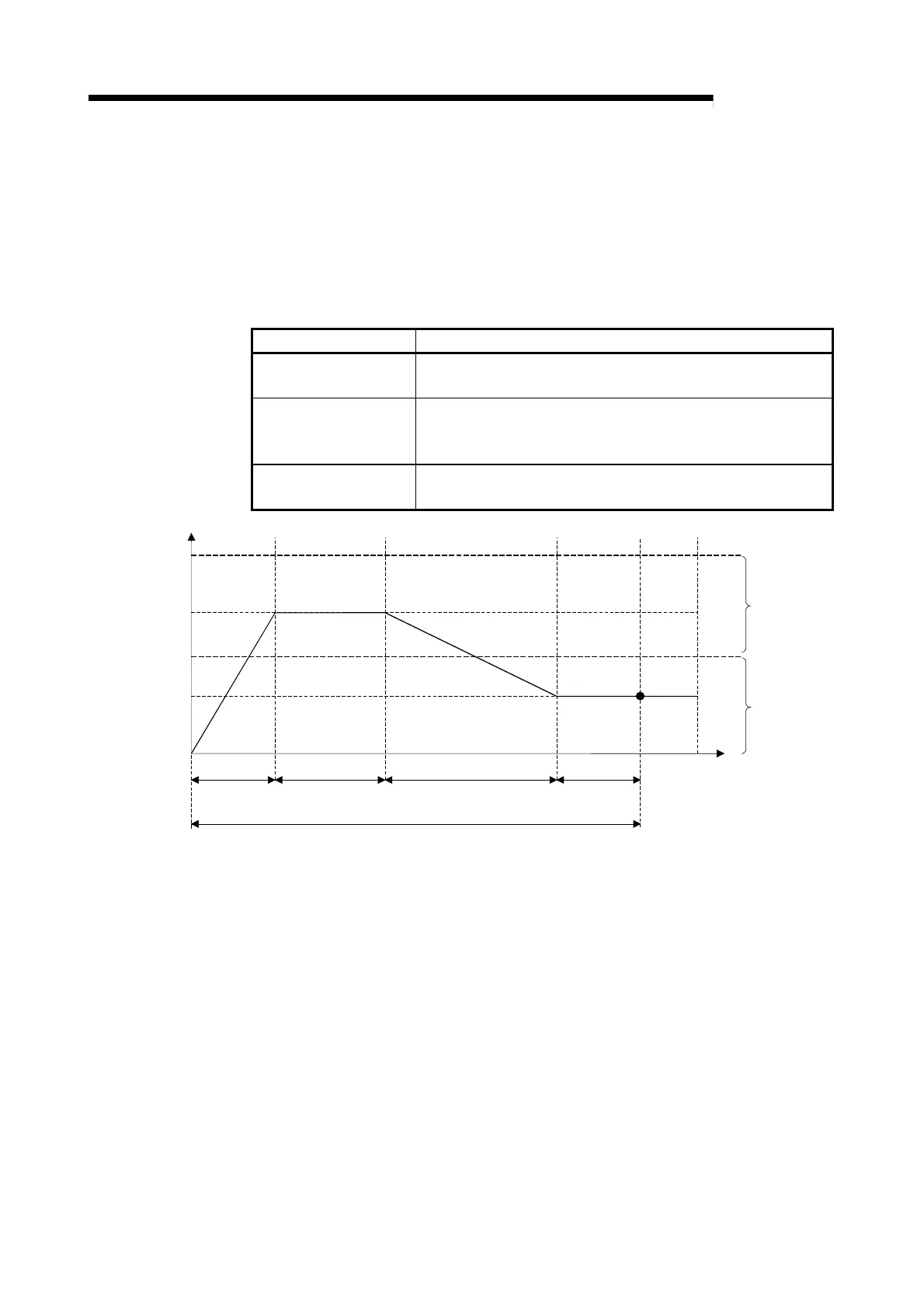

Program pattern 1
Segment 1 Segment 2 Segment 3 Segment 4
Time
Zone 1
Zone 2
Set value of
segment 1,2
Set value of
segment 3,4
Set value
