5 UTILITY PACKAGE (GX Configurator-TC)
3) From GX Developer, select:
[Online]
[Read from PLC] / [Write to PLC] "Intelligent function
module parameters"
Alternatively, from the intelligent function module selection screen of the
utility, select:
[Online]
[Read from PLC] / [Write to PLC]
<Text files>
A text file can be created by clicking the Make text file
button on the initial
setting, Auto refresh setting, or Monitor/Test screen.
Text files can be utilized to create user documents.
QCPU
RUN.
ERR.
BAT.
BOOT.
RS-232
USB
Q25HCPU
MODE.
A
GX Developer/
GX Configurator-TC
Disk
Project
AA
B
Personal computer
1)
2)
3)
Project
USER.
A: Intelligent function module parameters
B: Data saved by "Make text file"

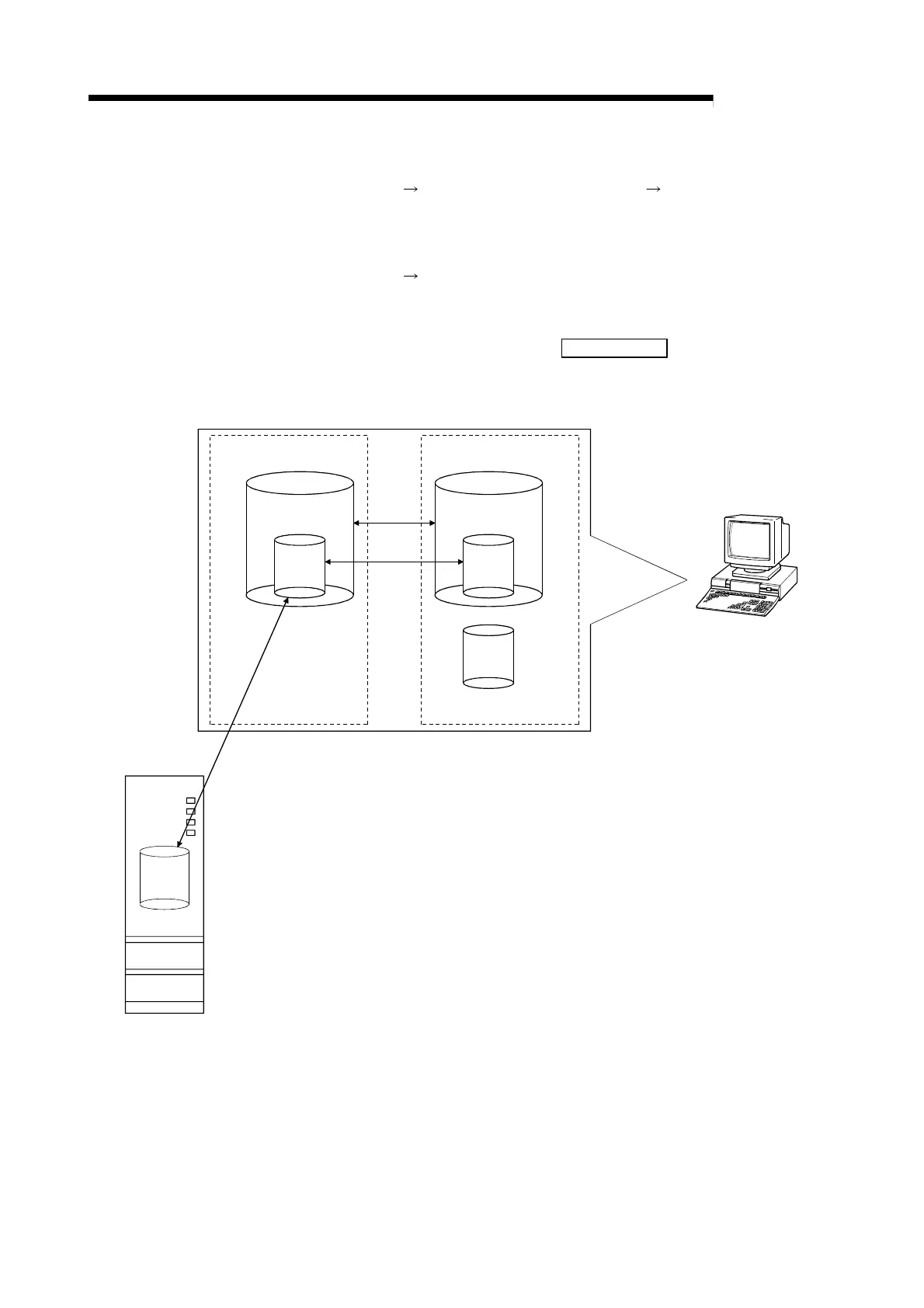

Figure 5.1 Correlation chart for data created with the utility package
