6 PROGRAMMING

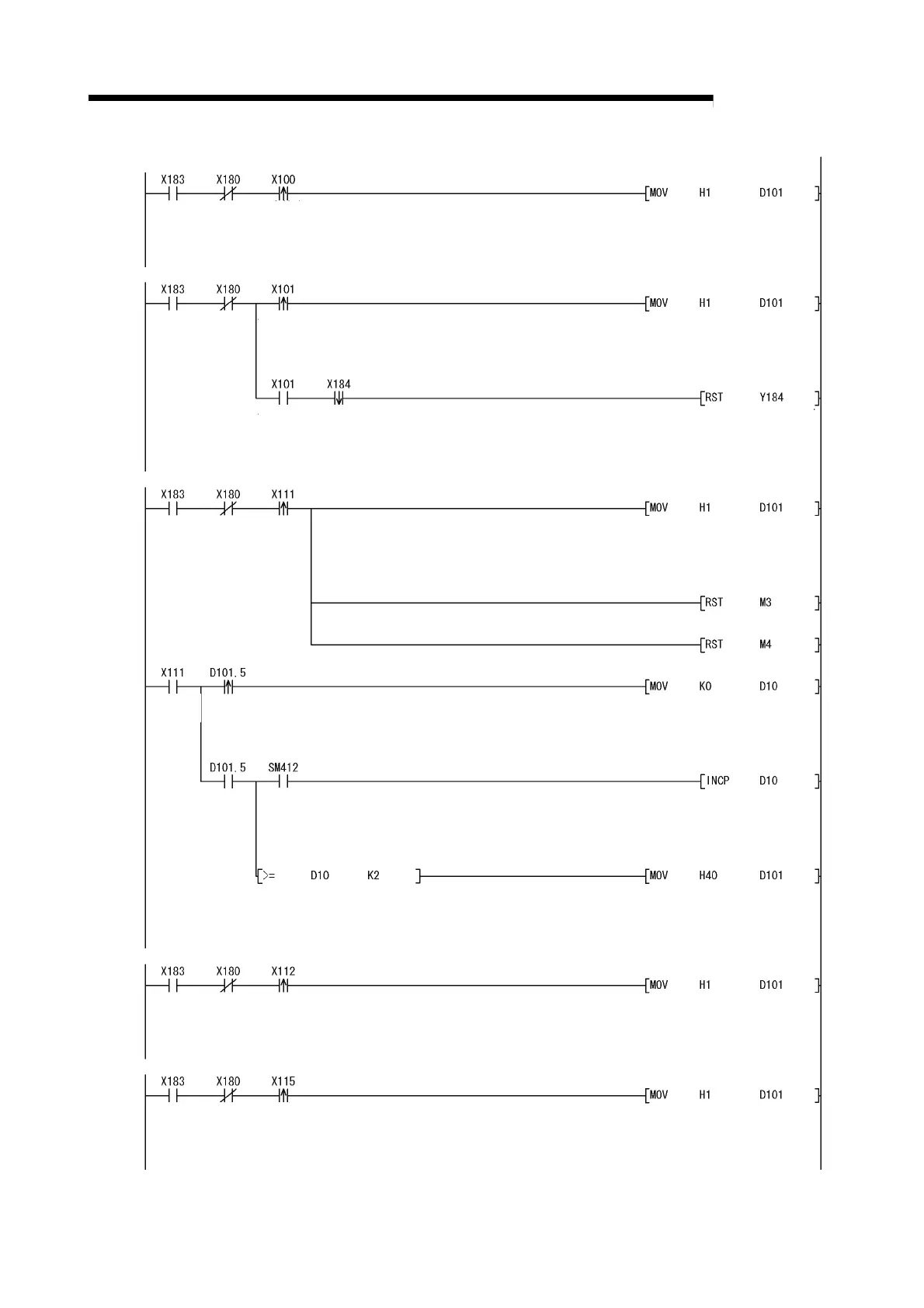

Setting value write command
Module
ready
flag
WDT
error
flag
Setting value
write command
Normal control_Auto tuning execution
Module
ready
flag
WDT
error
flag
AT execution
command
AT
execution
command
CH1
AT status
CH1
AT status
Program control_Auto tuning execution request
Module
ready flag
WDT
error flag
Program
control
AT
execution
Program
control
AT
execution
AT completion-
waiting counter
1 sec. clock
AT completion-
waiting counter
AT completion-
waiting counter
Program control_Pattern data setting
Module
ready flag
WDT
error flag
Program
operation_
Pattern data
setting command
Cascade control
Module
ready flag
WDT
error flag
Cascade
control_
Setting
command
