Mitsubishi Q Series User Manual

6 - 45 6 - 45
MELSEC-Q
6 PROGRAMMING

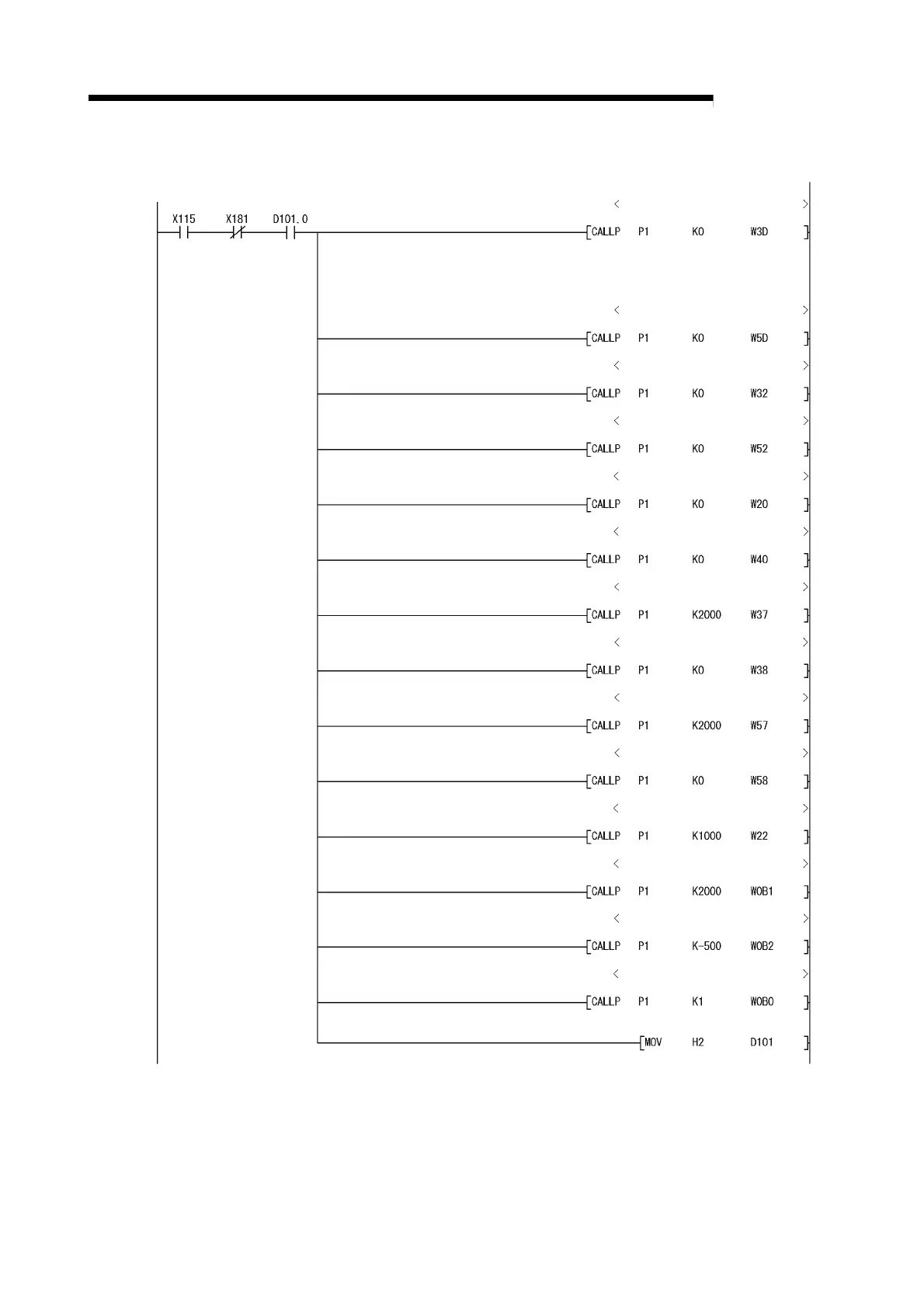

Cascade control setting
Cascade
control_Setting
command
Operation
mode
status
CH1 Unused channel setting
CH2 Unused channel setting
CH1 Control mode
CH2 Control mode
CH1 Input range
CH2 Input range
CH1 Upper setting limiter setting
CH1 Lower setting limiter setting
CH2 Upper setting limiter setting
CH2 Lower setting limiter setting
CH1 Set value setting
Cascade gain
Cascade bias
Cascade ON/OFF

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
