7 - 7 7 - 7
MELSEC-Q
7 ONLINE MODULE CHANGE

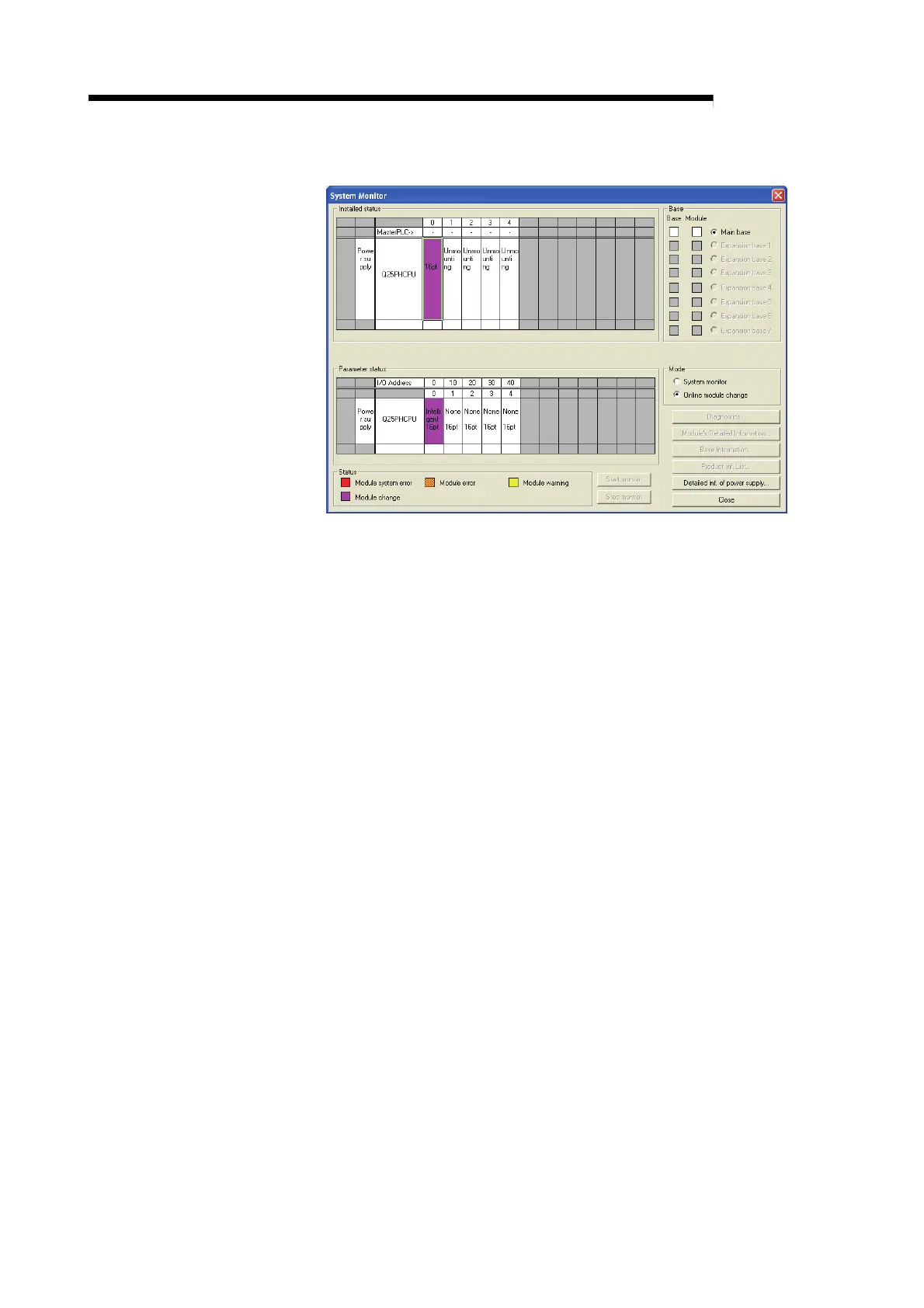

(c) Click the [Close] button to close the System monitor screen.
(d) Before resuming control, check the Q62HLC for the following items. If any
fault is found, refer to Chapter 8 and take corrective action.
1) The RUN LED is on.
2) The ERR. LED is off.
3) The watchdog timer error flag (Xn0) is off.
4) The error flag (Xn2) is off.

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
