Installing the Mx2wire+ Indoor Unit
2. Power supply from an external 48 V DC power supply unit
Connection: via two contact terminals either on the Info Module Mx2wire+ or on the Mx2wire+
indoor unit.
Advantage: exible voltage connection option and direct connection of a router/switch for
connecting remote stations (for example, Fritz!Box WLAN).
Extending the Range
A further advantage of Mx2wire+ is that it allows the range of a connection to be extended
considerably using a two-wire cable up to 500 m long (a T26 connection using a network cable
is limited to 100 m). For detailed technical information on the T26 version with Mx2wire+
technology, see Section 1.1.6, «Info Module Mx2wire+ (With Mx2wire+ Indoor Unit)».

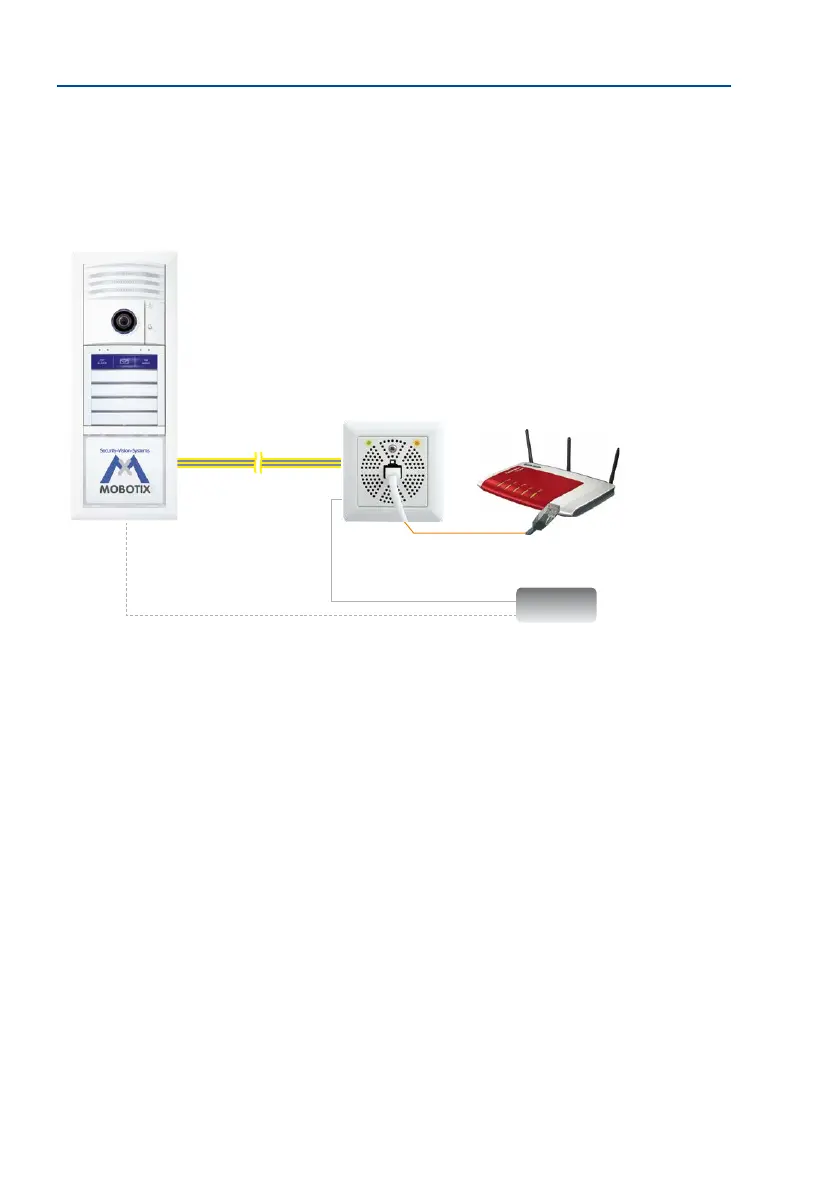

Two-wire cable
Data and power
Mx2wire+
indoor unit
Switch, e.g.,
Fritz!Box
With
Info Module Mx2wire+
48-57 V DC
Power supply
