T26 System Manual Part 1: System Overview

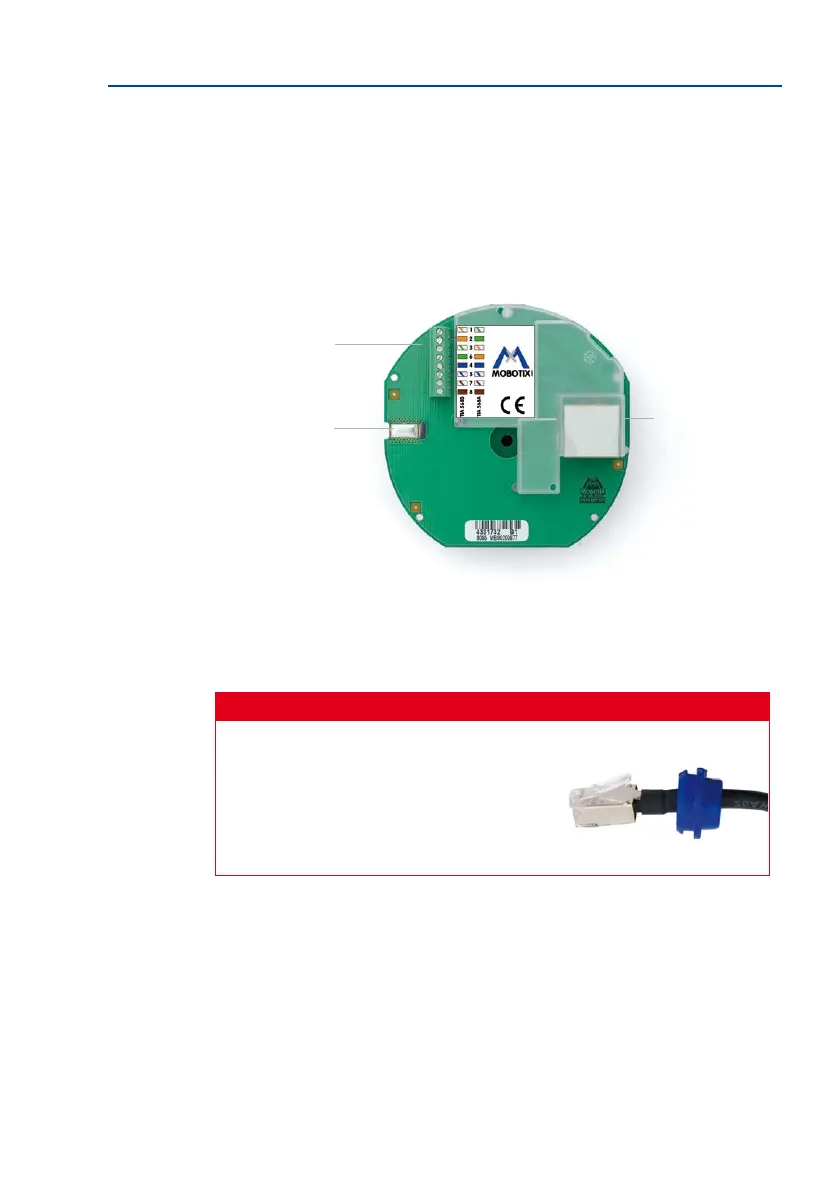

1.1.2 ETH Module (Ethernet Terminal Board)
The Ethernet terminal board ETH Module is used to connect the door station for the T26
versions without Mx2wire+ technology. It securely connects the camera module with the
8 connected wires of the network patch cable via RJ45 connector (for installation, see Chapter 2,
«Installation»).
Caution
Only use original MOBOTIX cables to connect the camera.
Standard cables purchased from other suppliers do
not meet the necessary specications for proper
fastening (not impermeable/weatherproof).
Ethernet connector
with PoE supply
Cable sheath
contact
Connector for the
special patch cable
of the T26-CamCore
ETH Module
Ethernet patch cable
