1.2 MX-DoorMaster
The T26 can be coupled with the MX-DoorMaster with internal access code memory, making
it impossible to open the door by forcibly removing the system and bypassing the connect
-
ing cable.

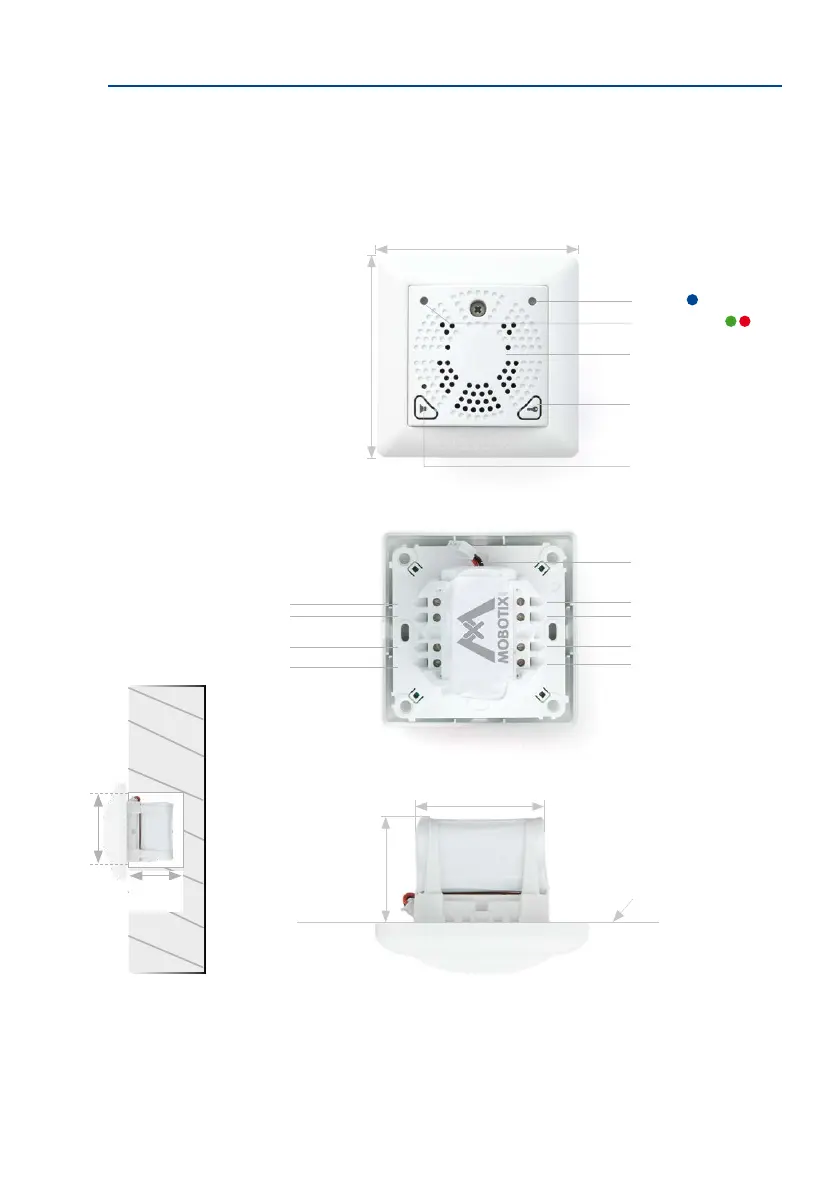

Minimum mount-
ing dimensions:
67 mm/
2.64 in
ø 68 mm/
2.68 in
80 mm/3.15 in
80 mm/3.15 in
LED blue
Door opener (emergency
unlocking in the event of a
power failure)
Volume of doorbell
Speaker
Connector for battery pack
OUT –
IN –
IN2 +
IN1 +
OUT1 +
OUT2 +
MX +
MX –
41.5 mm/1.63 in
51 mm/2.01 in
Wall
LED (green, red)
