1.4.2 IO Module (Extended Terminal Board)

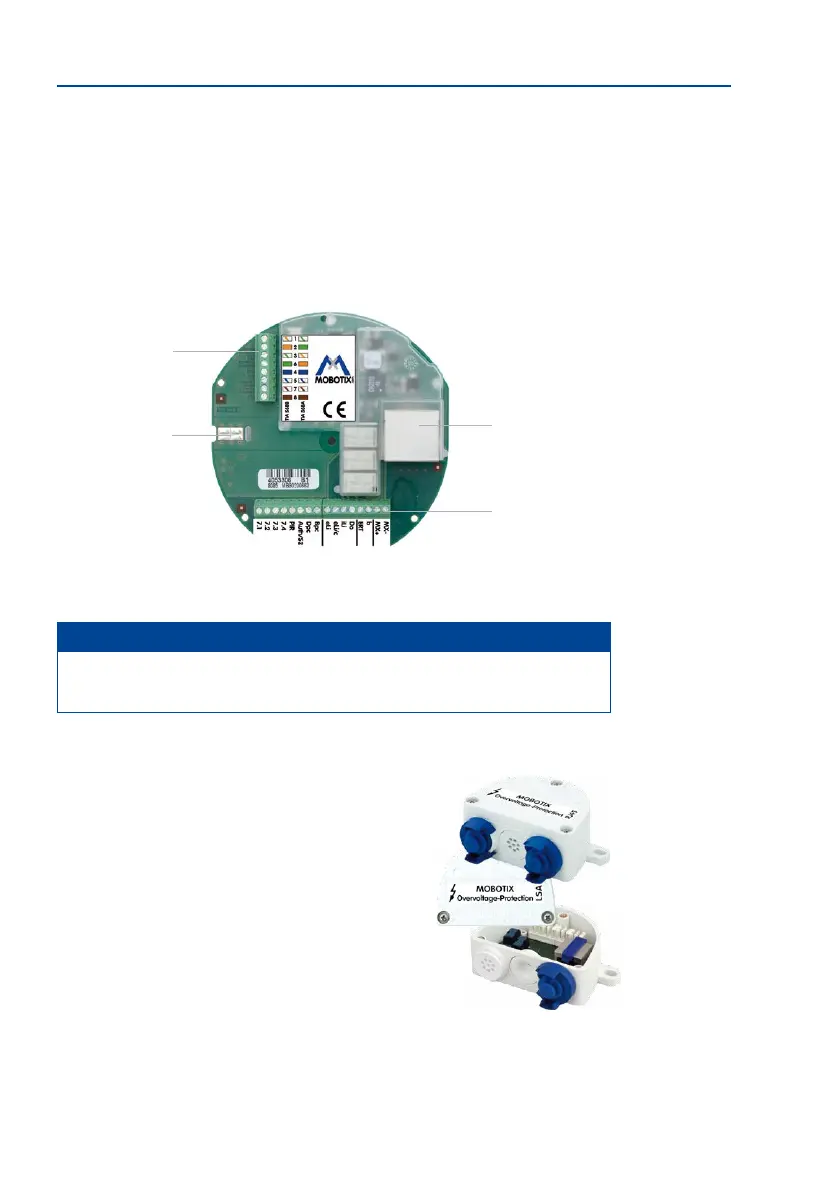

In addition to the Ethernet terminal board (ETH Module), MOBOTIX oers an IO Module
(MX-OPT-IO1) with extended connection options for the door station (e.g., doorbell buttons,
light, garage door opener, etc.).
The board provides 8 switch inputs and 3 switch outputs. The network cable and the camera
module T26-CamCore are connected in the same manner as the Ethernet terminal board.
Note
Please read further information on the connection details and on using this product
in Section 2.7.1, «Using the IO Module».
1.4.3 MX-Overvoltage-Protection-Box
Order no.: MX-Overvoltage-Protection-Box-RJ45
Order no.: MX-Overvoltage-Protection-Box-LSA
Weatherproof network connector (protection class IP65,
–30 to 60 °C/–22 to 140 °F)
with surge protection of up
to 4 kV for MOBOTIX IP cameras
, ideal for replacing the
MX-Patch-Box.
At the same time, the MX-Overvoltage-Protection-Box
provides a weatherproof connection of a camera’s patch
cable to a network patch cable ( -RJ45 variant) or a network
installation cable ( -LSA variant).
Ethernet connector
with PoE supply
Cable sheath
contact
Camera connector
(RJ45)
Extended connector
