T26 System Manual Part 1: Installation

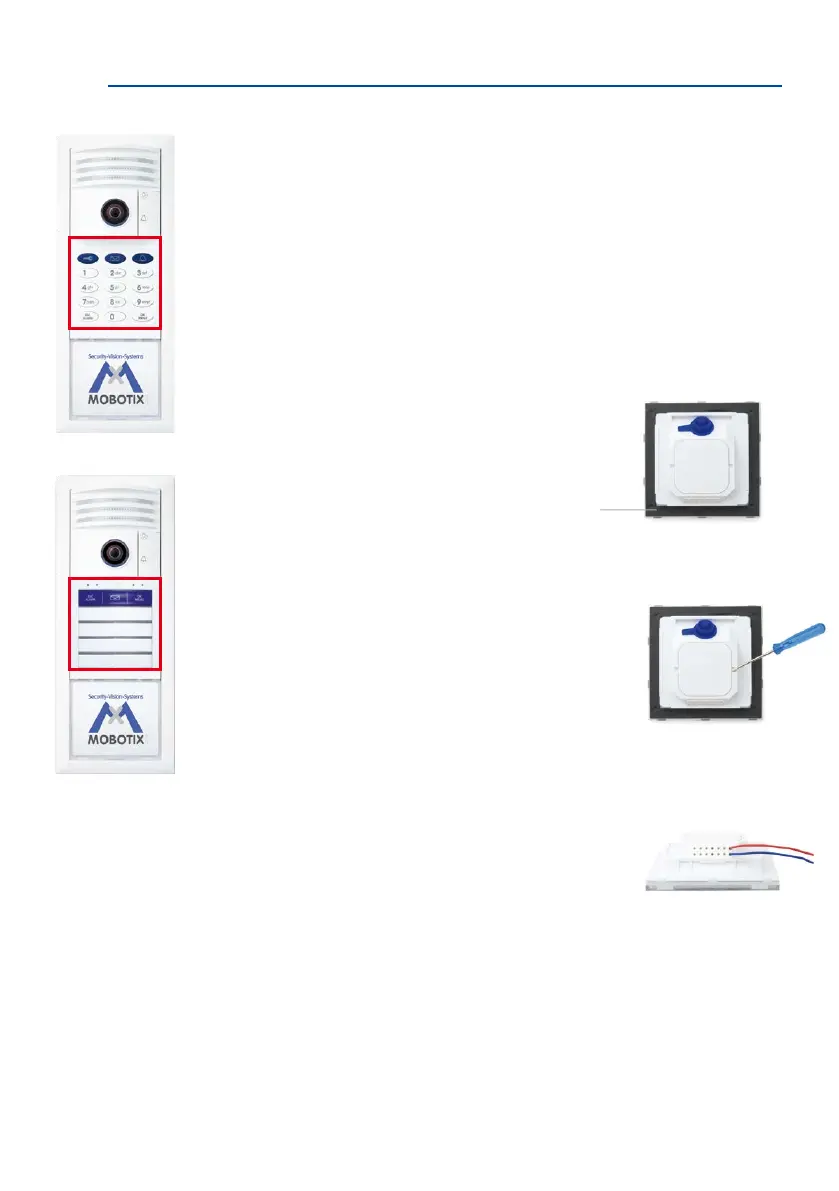

2.4.3 Installing the Access Module (KeypadRFID/BellRFID)
Installing the KeypadRFID or BellRFID access modules is identical; the pictures in this section
show who to install the KeypadRFID. For more information on these access modules, please
refer to the corresponding Quick Installation documents (www.mobotix.com > Support >
Manuals > DoorStation > Single Components):
•
Quick Installation: KeypadRFID
• Quick Installation: BellRFID
Please pay attention to the dierent system wiring congurations that apply (described in
Section 2.1), depending on whether or not the MX-DoorMaster and external devices (e.g.,
lights) are used.
1. Ensure that the gasket is tted to the access module.
2. Loosen the rear cover plate (using a small screwdriver
or similar tool) and remove it. You now have a clear view
of the connectors located directly on the access mod-
ule board.
3. Remove approximately 5 mm of insulation from each of
the cables to be connected and feed each cable through
one of the wire apertures in the housing (piercing the
rubber membrane).
T26 with KeypadRFID
Cindy Jones
Thomas Jones
The Jones Family
Dr. Jones, MD
T26 with BellRFID
Gasket
