122
T26 System Manual Part 1: Installation
2.7.2 Using the Signal Outputs of the Access Module (KeypadRFID/BellRFID)
If the T26 door station is used with the MX-DoorMaster and a standard door opener, all the
access module connectors apart from the MxBus connector remain unused (see Section 2.5.2,
Version 1).

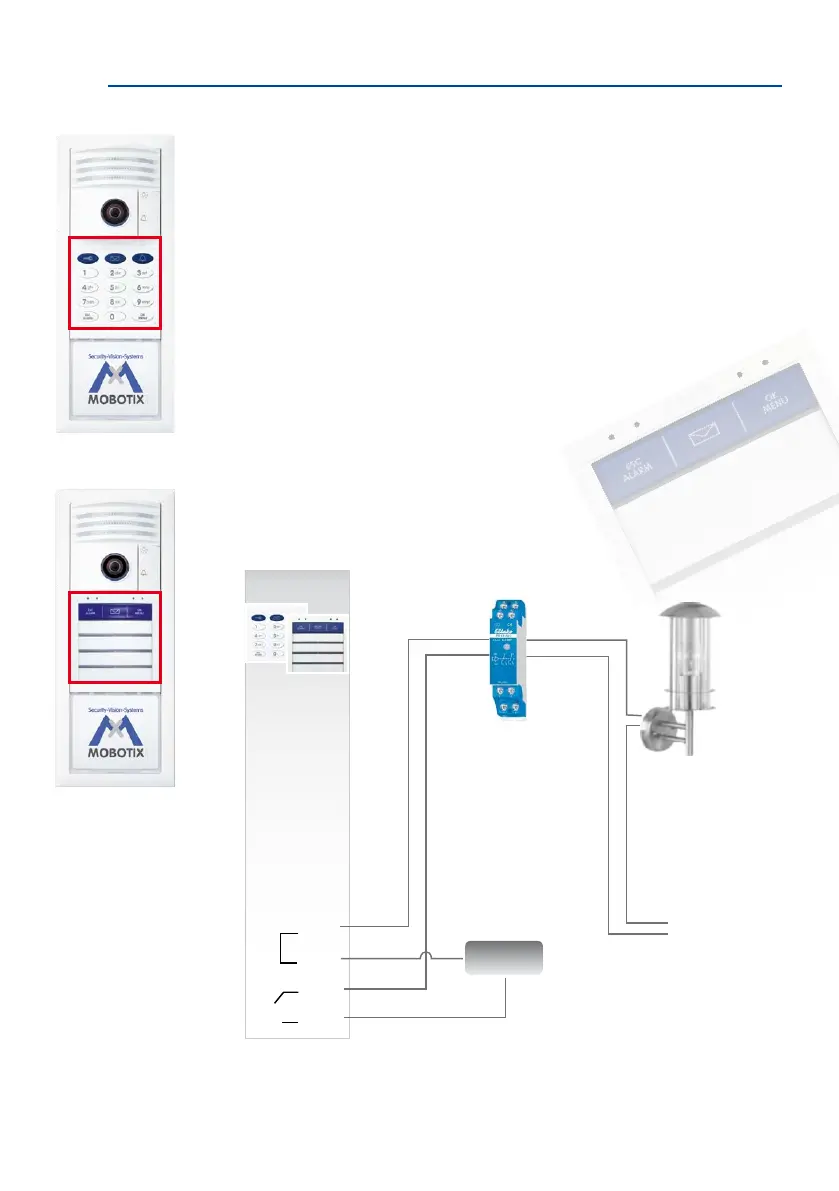

Example: Connecting a Lamp Supplied With 230 V (KeypadRFID/BellRFID)
Connect power relay (for lamp):
• First wire of control circuit (A1 terminal of relay) to COM terminal
• Second wire of control circuit (A2 terminal of relay) to OUT A terminal
• Power circuit for lamp (to be connected only by a qualied electrician)
Connect external power supply (for relay control voltage, e.g. 12 V AC):
• First wire to OUT B terminal
• Second wire to COM terminal
Connect lamp:
• First wire to power relay
• Second wire to 230 V
T26 with KeypadRFID
Cindy Jones
Thomas Jones
The Jones Family
Dr. Jones, MD
T26 with BellRFID
Please note that you can
currently attach
only one
access module
(i.e., either
KeypadRFID or BellRFID)
to an DoorStation.
KeypadRFID/
BellRFID
MX +
MX –
MX +
MX –
IN1 +
IN1 -
IN2 +
IN2 -
COM
COM
OUT A
OUT B
e.g. 12 V AC
Power supply
Lamp
230 V
Relay
