T26 System Manual Part 1: System Overview
1.1.7 Housing and Module Frames
The robust DoorStation can be installed in both on-wall and in-wall systems, it is weather-
proof (IP65) and cannot be stolen. The system consists of a housing and a frame. The frame
for mounting the modules is simply screwed on to the housing used.

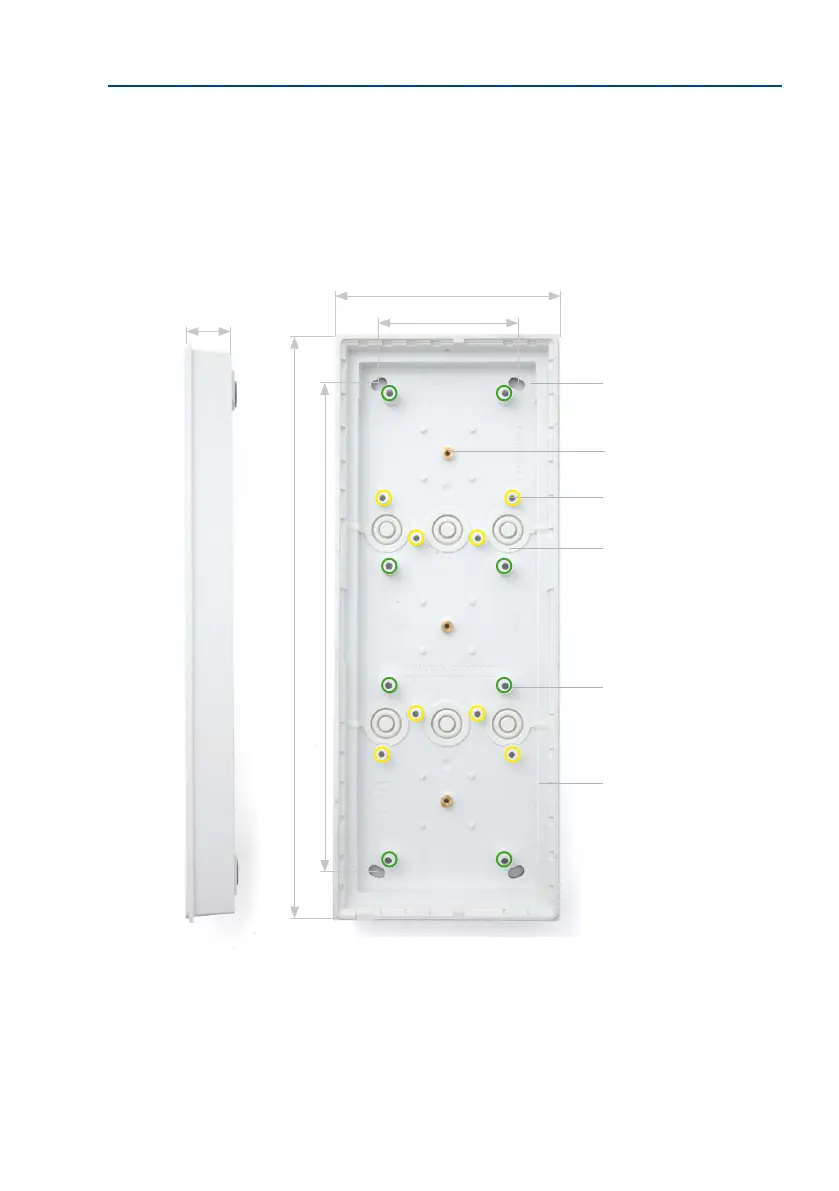

On-Wall Housing (Fig. Triple Housing)
Mounting points for terminal
board or IO Modulet (3x)
Wall mount (4x)
Cable guide (6x)
Mounting points for
cable binders
(8x, marked yellow)
Mounting points for mod-
ule frames
(8x, marked green)
Mounting points for gasket
126 mm/4.96 in
80 mm/3.15 in
327 mm/12.87 in (double housing: 227 mm/8.94 in, single housing: 138 mm/5.43 in)
31 mm/1.22 in
282 mm/11.10 in (double housing: 182 mm/7.17 in, single housing: 90 mm/3.54 in)
