Mobotix T26 - Page 37

37
Outdoor Station

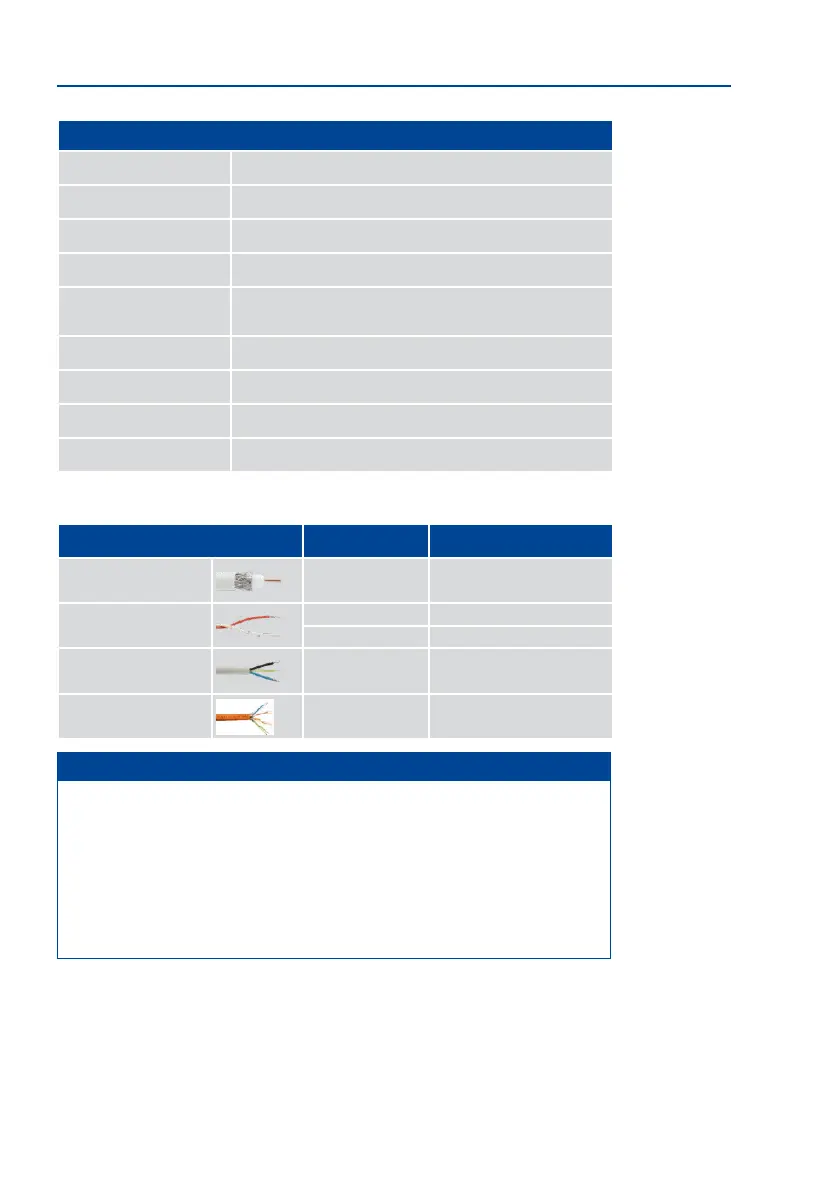

Technical Specications: Mx2wire+ Indoor Unit
Data transfer rate Up to 50 Mbps net (depending on distance)
Interfaces
Ethernet (PoE Class 3), Mx2wire+ info module, 48-57 V DC, 600 mA
(optional additional supply)
Certicates EMV (EN55022, EN55024, EN61000-6-1, FCC part15B, AS/NZS3548)
Power supply
PoE+ (PoE IEEE802.3af), performance-related 7 Watt
own consumption or 48-57 V DC, 600 mA SELV power supply unit
Status display
LED green (network connection, power supply),
LED orange (data transfer via AB conductor is active,
door station connected)
Protection class IP20 (DIN EN 60529)
Operating conditions –5 to 40 °C/23 to 104 °F (DIN EN 50155)
Connecting wire thickness Cable cross-section 0.14 to 2.5 mm2, diameter 0.4 to 1.6 mm
Dimensions (W x H x D)
80 mm x 80 mm x 38 mm (in-wall version),
80 mm x 80 mm x 45 mm (on-wall version)
Max. Cable Lengths of Usable Cable Types as Two-Wire Cable of a DoorStation
Cable type Cable thickness Max. cable length
Antenna or
coaxial cable
0.6 mm (inner core) 100 m (50 Mbps)
Telephone line/
bell wire
0.6 mm 100 m (50 Mbps)
0.8 mm 200 m (50 Mbps)
Installation cable
1.5 mm2 300 m (40 Mbps)
Network
installation cable
Cat7 500 m (45 Mbps)
Notes
The Mx2wire+ set consisting of two units (info module and indoor unit) contains all
the components required to establish an Ethernet connection via a two-wire cable.
Please note that the two Mx2wire+ units are matching pairs and precongured at
the factory. The use of a dierent Mx2wire+ unit that was not supplied in the original
packaging is therefore technically not possible. In case of a defect, both units must
always be exchanged for a new Mx2wire+ pair that has been congured by MOBOTIX.
Mx2wire+ pair for T26:
Info Module Mx2wire+ module
with Mx2wire+ indoor unit
