T26 System Manual Part 1: System Overview
Mx2wire+ Indoor Unit
An Mx2wire+ set always consists of two devices that communicate with one another. For
this reason, the necessary unit to connect to the network and to supply power is included
with the Info Module Mx2wire+ info module in the door station.

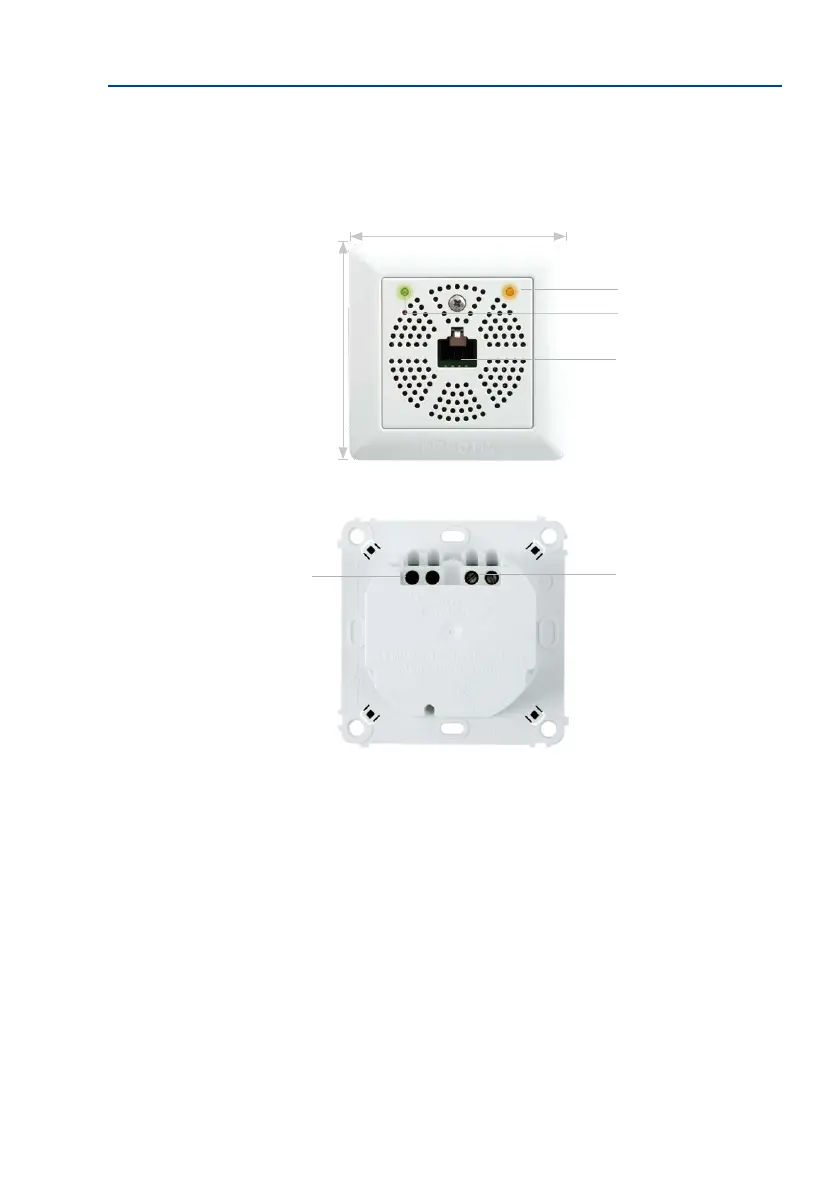

LED orange (data)
LED green (power supply)
RJ45 network connection
Two-wire connection
Info Module Mx2wire+
80 mm
80 mm
48 to 57 V DC
(optional addi-
tional power
supply)
Power supply with PoE+
switch or 48 to 57 V DC,
600 mA (power supply unit)
