T26 System Manual Part 1: Installation
2 INSTALLATION
2.1 Overview: Connection and Wiring Diagrams
The following diagrams are an overview of the wiring plans that will allow you to connect
the DoorStation as intended. Please refer closely to the conguration that best suits your
particular needs.
2.1.1 With MX-DoorMaster
Using a MX-DoorMaster with decentralized access code memory makes it impossible to
open the door by bypassing the connection cable, thereby protecting your system against
unauthorized access. A battery, kept fully charged via MxBus at all times, supplies power to
the electric door opening mechanism – even in the case of a power failure.

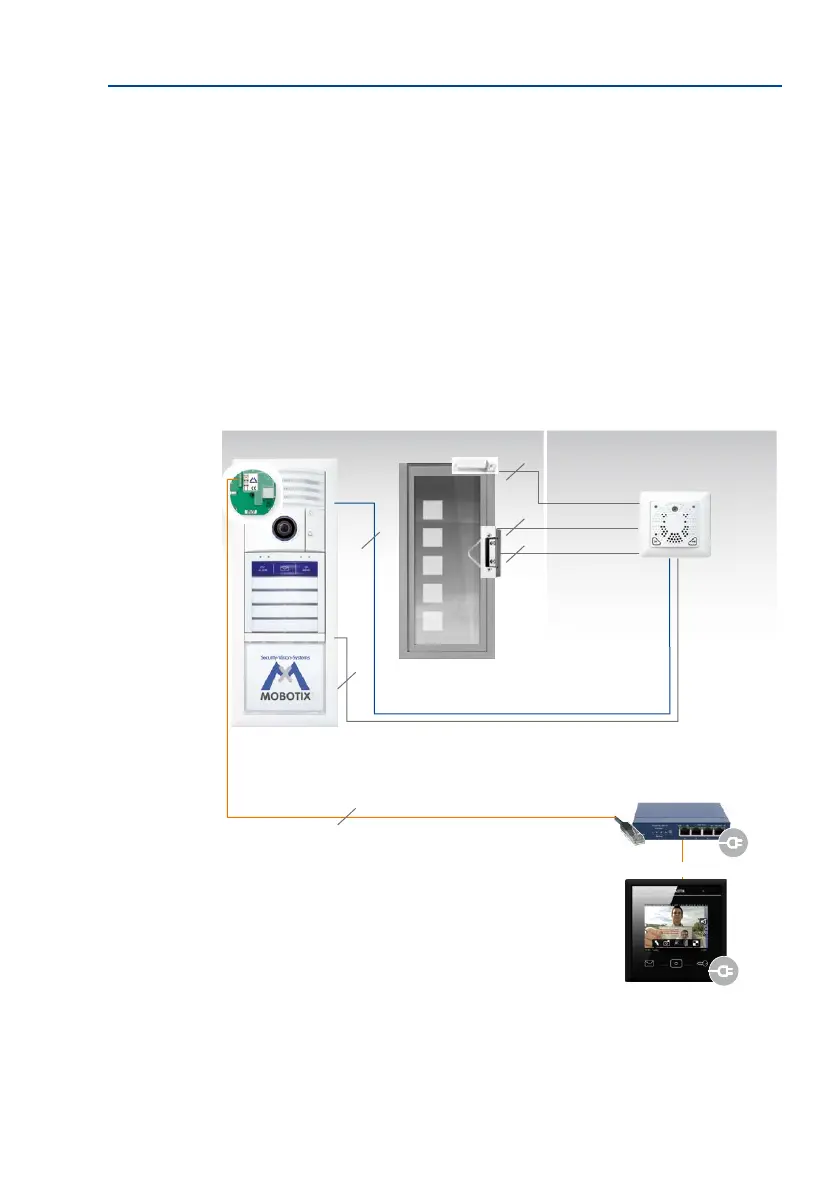

Outside Inside
Door station
Door
MX-DoorMaster
Door sensor
Door lock
sensor
Door opener
The protection
Ethernet
MxBus
MxDisplay+
2
2
2
2
2
PoE switch
8
The gure above the con-
nection sections represents
the number of cable wires
Black: YSTY 0.8
(recommended)
or 0.6 mm
Orange: Ethernet
Cat. 5 or higher
To Next Page
