Mobotix T26 - 1.1.4 Access Module BellRFID

30
T26 System Manual Part 1: System Overview
1.1.4 Access Module BellRFID
This module is used for keyless and scheduled access to the house or building with an
RFID transponder card and also has bell buttons for up to ve parties (depending on the
selected bell button set).
In addition, the BellRFID module allows leaving and retrieving messages on the video mailbox.

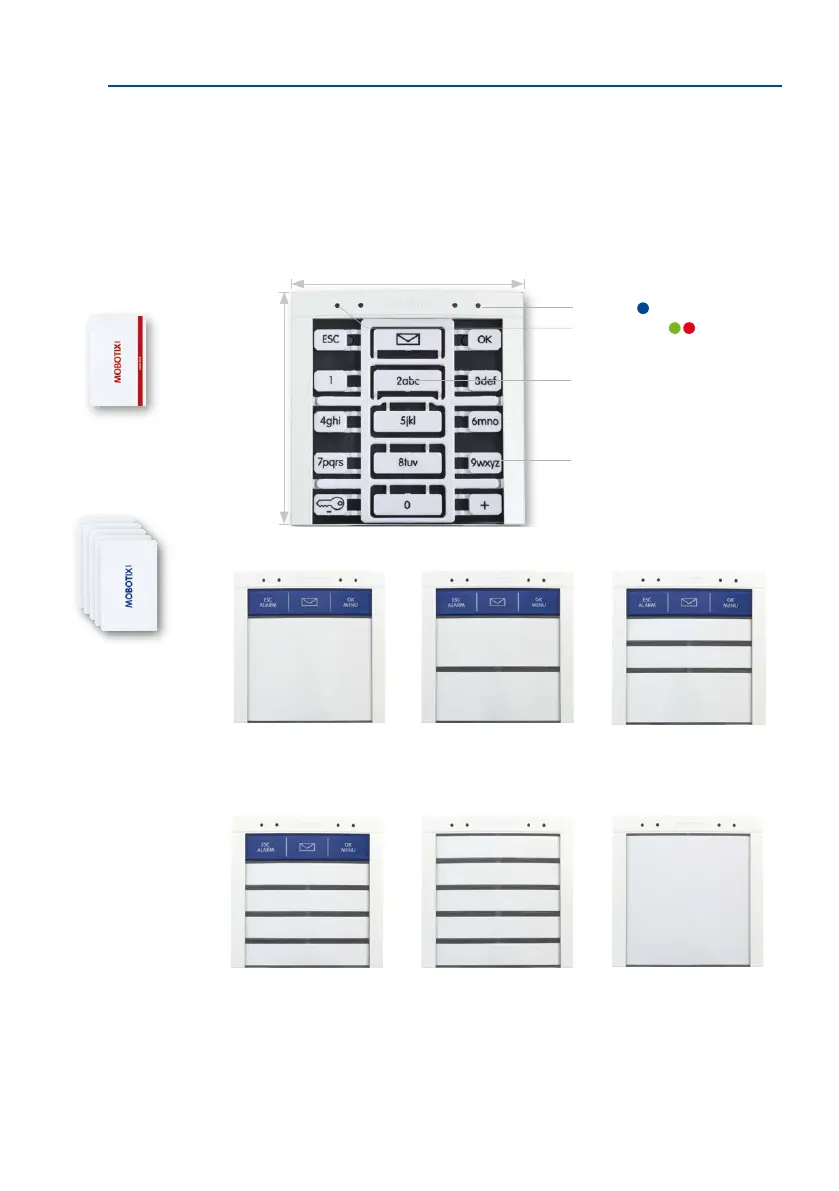

Available Button Sets
Included in delivery:
One admin RFID card
for initial operation and
activating user cards
Included in delivery:
Several user RFID cards
for opening the door and
video mailbox access
Additional cards (admin/
user) can be ordered
from MOBOTIX
Keypad insert for initial
operation/conguration
Inser for bell buttons
(1 to 5, see below)
99 mm/3.90 in
99 mm/3.90 in
LED (blue)
LED (green, red)
MX-Bell1-Button-F1
Large bell button
with function buttons
The Jones
Family
MX-Bell1-Button-F2
2 medium-size bell buttons
with function buttons
The Jones Family
Dr. Jones, MD
MX-Bell1-Button-F3
1 large, 2 small bell buttons
with function buttons
Cindy Jones
Thomas Jones
Dr. Jones, MD
The Jones
Family
MX-Bell1-Button-XL1
XL bell button
(no function buttons)
MX-Bell1-Button-F4
4 small bell buttons
with function buttons
Cindy Jones
Thomas Jones
The Jones Family
Dr. Jones, MD
MX-Bell1-Button-05
5 small bell buttons
(no function buttons)
Caroline Jones
Cindy Jones
Thomas Jones
The Jones Family
Dr. Jones, MD
Please note that you can
currently attach
only one
access module
(i.e., either
KeypadRFID or BellRFID)
to an DoorStation.
