Outdoor Station
Technical Specications BellRFID
Features
Keyless access using RFID card with 1 to 5 bell buttons (depending
on button set)
Interface MxBus
User interfaces
RFID (13.56 MHz, Mifare DESFire EV1), backlit bell buttons, sound
feedback
Inputs 2 galvanically separated inputs (AC/DC, self-powered, up to 48 V)
Outputs 1 insulated relay output (AC/DC, up to 48 V/60 W/2 A)
Sensors Illumination sensor
Protection class IP65 (DIN EN 60529)
Operating temperature –30 to 50 °C/–22 to 122 °F (DIN EN 50155)
Power Supply MxBus
Power consumption typ. 1 W
Measurements (width x
height)
99 mm x 99 mm
Technical Specications: Terminals Used on the BellRFID module
Cable cross-section, solid min. 0,14 mm²/max. 0,5 mm²
Cable cross-section, exible min. 0,2 mm²/max. 0,5 mm²
Cable cross-section, exible
with wire-end sleeves, with
-
out plastic sleeves
min. 0,25 mm²/max. 0,5 mm²
Cable cross-section, AWG/
kcmil
min. 24/max. 20
AWG according to UL/CUL min. 26/max. 20
I/O terminal
Sealing plug
Gasket
MxBus terminal

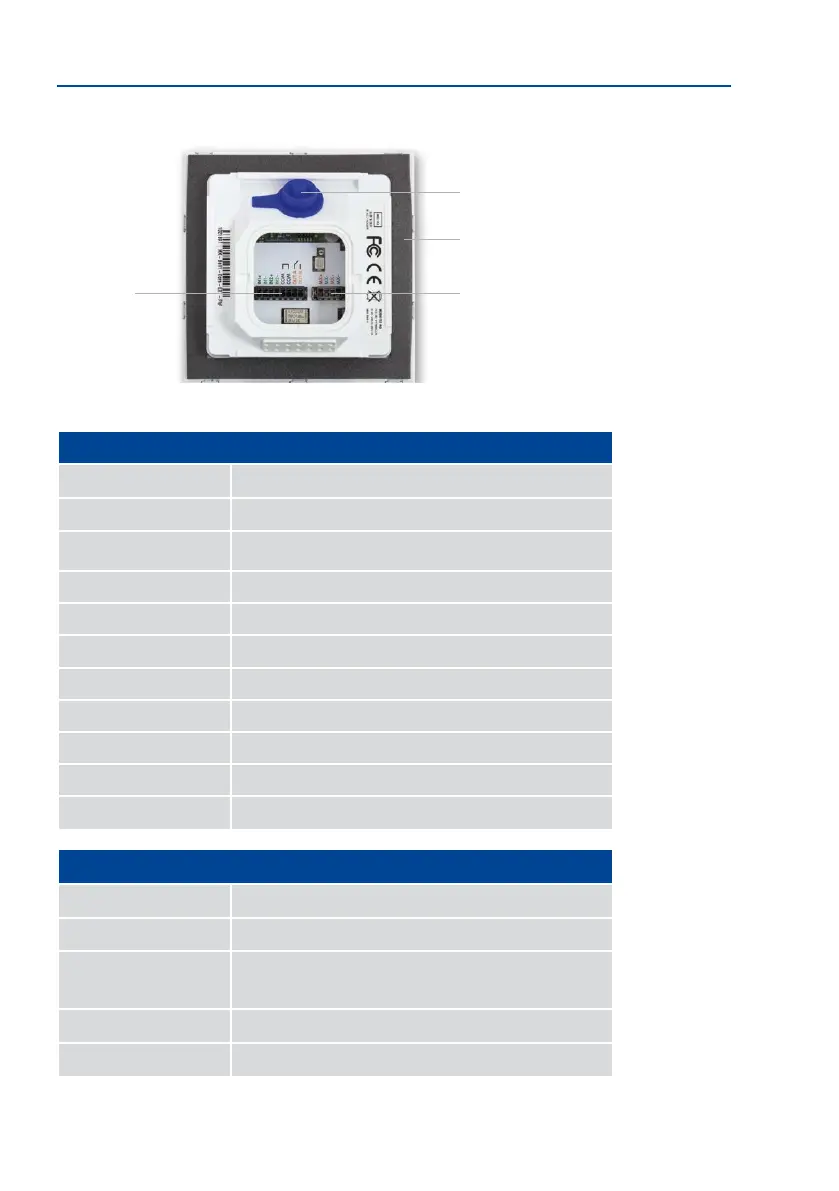

Back with housing cover removed
In the case of a power
failure, the BellRFID module
and the door opener are
powered by the battery
of the MX-DoorMaster
Recommended wire
diameter: 0.6 to 0.8 mm
