OVERVIEW OF THE SYSTEM COMPONENTS
What does a typical system look like and what components are included? This section
describes the setup for a complete system with a video door station including a MX-DoorMaster,
KeypadRFID and Info Module Mx2wire+ with Mx2wire+ technology to connect the door sta-
tion using existing two-wire cabling. In newer buildings, it is preferable to lay an Ethernet
cable directly to the door.

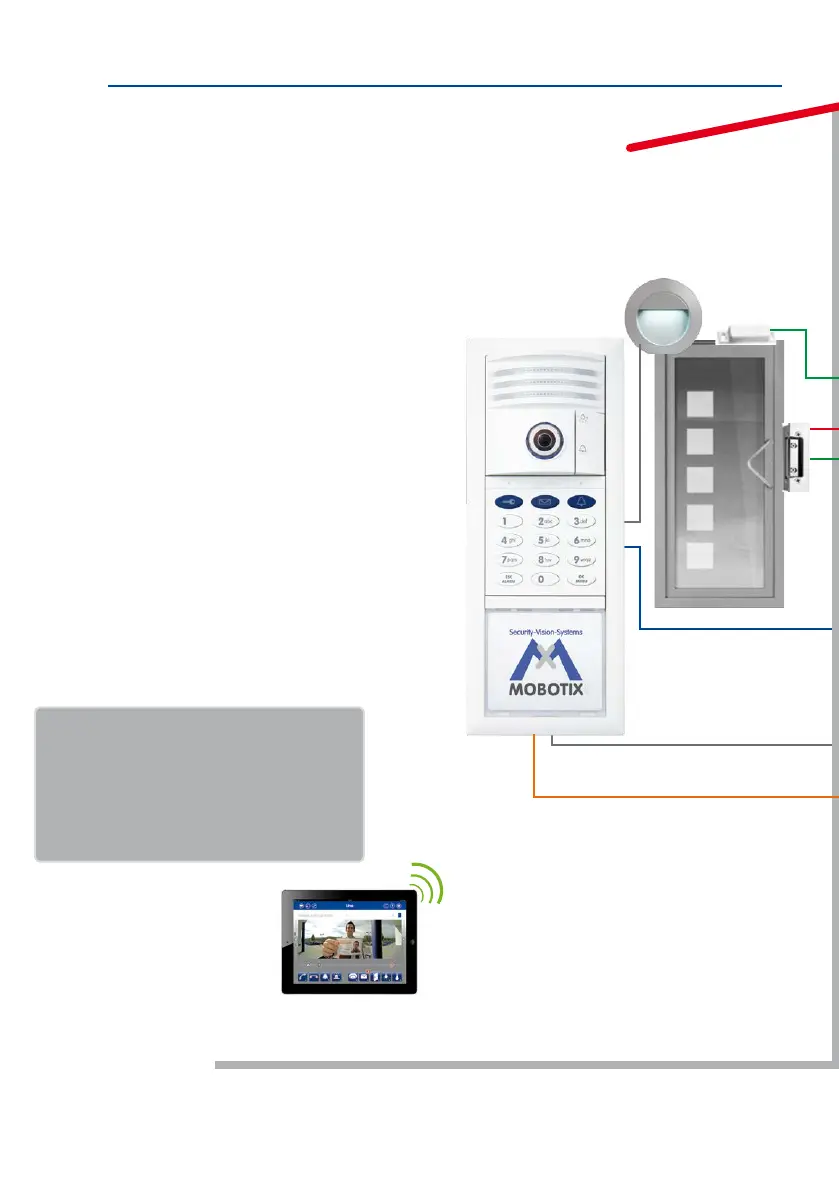

Hemispheric camera (with LEDs)
• Two-way video communication
• Lip-synchronous sound
• Event-controlled recording
•
Outdoor light and doorbell button
Info Module (backlit)
• With Mx2wire+ technology
(optional, data transfer and power
supply via two-wire connection)
Cat cable
Data and power
Two-wire cabling
Data and power
MxBus
encrypted
OR
Lights
Access module (KeypadRFID/
BellRFID)
• Open/lock door
• Keyless access (RFID and PIN)
• Operate voice mailbox
MxBus two-wire cabling:
• Data (9,600 baud) and power (PoE)
• Max. 8 devices to be connected
• Encrypted data transfer
• Power supply and control via camera
MOBOTIX MxBell for mobile devices
• Free-of-charge (via App Store/Google Play)
• For iOS 10/Android 4.4 and higher
• Operation of the T26 DoorStation
• All functions including two-way communication
• Connection via WiFi/UMTS (3G)/LTE (4G)
