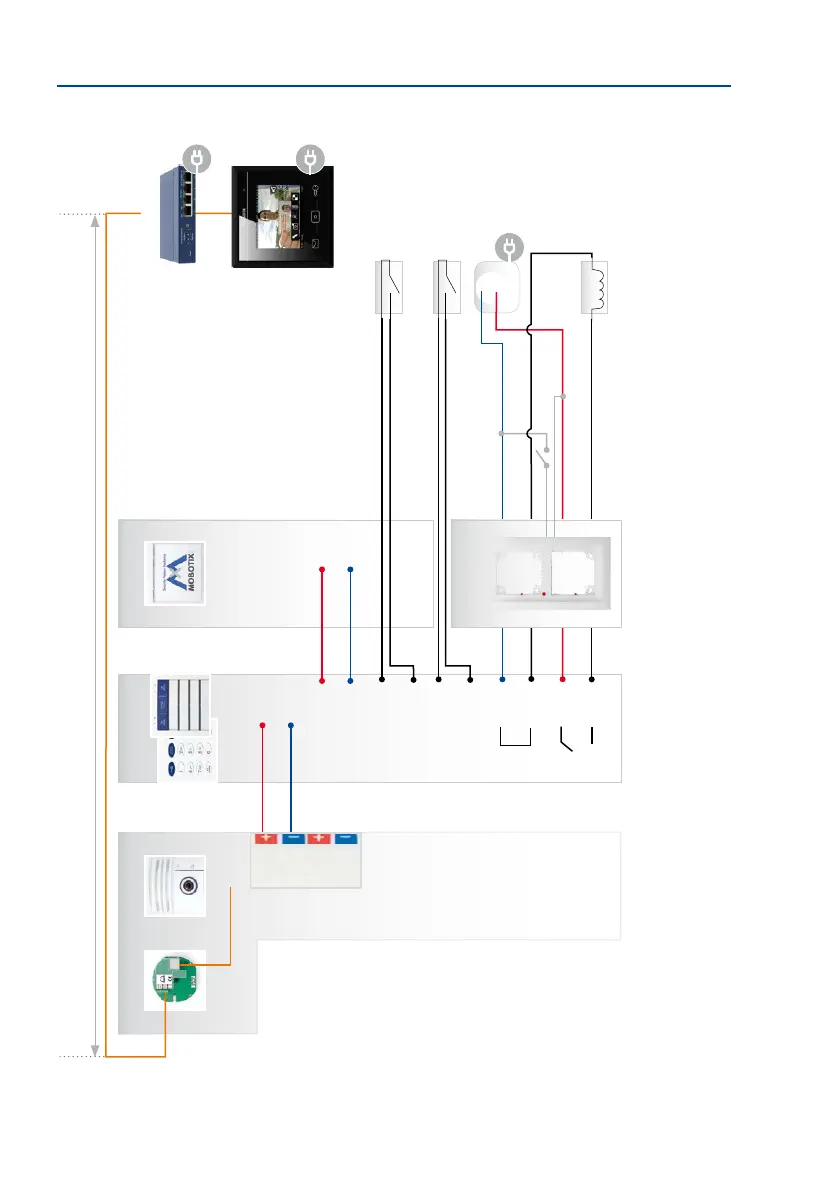

Overview: Connection and Wiring Diagrams
Modules are connected
via the looped-through,
two-wire MxBus cable that
transfers data and power
simultaneously (cable
included in packaging)
The module terminal
designations can be found
directly on the module
T26-CamCore Info Module
MxETH
MX +
MX –
MX +
MX –
MX +
MX –
MX +
MX –
IN1 +
IN1 -
IN2 +
IN2 -
COM
COM
OUT A
OUT B
MX +
MX –
MX +
MX –
ETH Module
Door sensor
Door lock sensor
Power supply
Door opener
max. 100 m/109.36 yd
Connection of external devices (light relay,
etc.) and 12 V power supply unit
MxDisplay+
e.g. PoE switch
12 V DC
+
The protection
(module frame)
S
KeypadRFID/
BellRFID
