79
Remote Stations and Network Connection

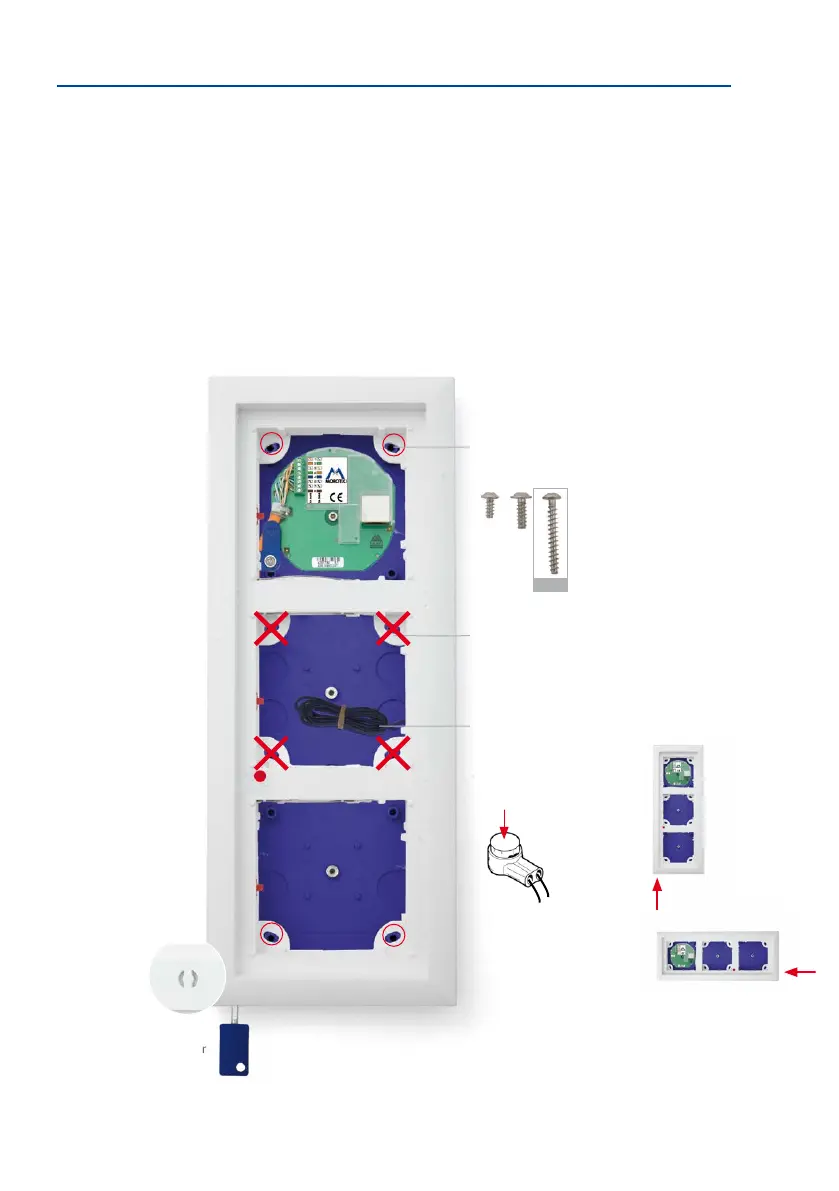

Cavity and In-Wall (Fig. Triple Housing)
Please note that in this case the module frame may only be screwed onto the four outermost
positions on the housing (max. torque: 0.4 Nm).
Frame alignment for vertical
and horizontal mounting
(red arrow points to keyhole)
4 screws,
marked red,
max. 0.4 Nm
NOT USABLE
Guide the protec-
tion cable to the
MX-DoorMaster (directly
or extended with the
two individual wire
connectors)
Keyhole in bottom le
corner
Insert wire (not stripped)
(1) and press down cut-
ting clamp with pliers (2)
1
2
30 mm
