802.11n WLAN ADSL2+ Router
Fieldsontherstsetting
block
Description
Enable Check to enable the selected route or route to be
added.
Destination The network IP address of the subnet. The destination
can be specied as the IP address of a subnet or a
specic host in the subnet. It can also be specied as
all zeros to indicate that this route should be used for
all destinations for which no other route is dened (this
is the route that creates the default gateway).
Subnet Mask The network mask of the destination subnet. The
default gateway uses a mask of 0.0.0.0.
Next Hop The IP address of the next hop through which trafc
will ow towards the destination subnet.
Metric Denes the number of hops between network nodes
that data packets travel. The default value is 0, which
means that the subnet is directly one hop away on the
local LAN network.
Interface The WAN interface to which a static routing subnet is
to be applied.

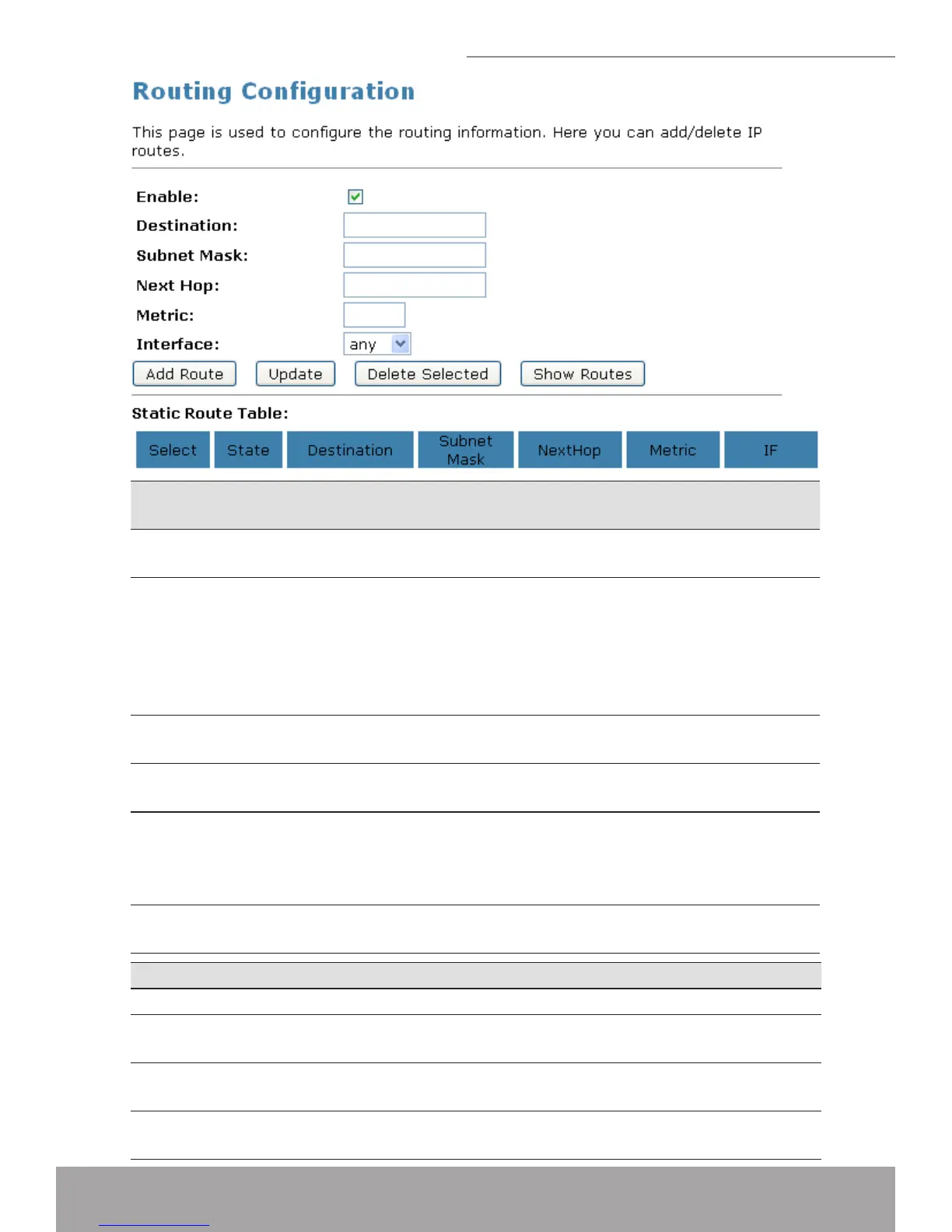

Function buttons Description
Add Route Add a user-dened destination route.
Update Update the selected destination route on the Static
Route Table.
Delete Selected Delete a selected destination route on the Static
Route Table.
Show Routes Click this button to view the DSL device’s routing table.
The IP Route Table displays, as shown in Figure.
