Diagnostic Test
The Diagnostic Test page shows the test results for the connectivity of the physical
layer and protocol layer for both LAN and WAN sides.

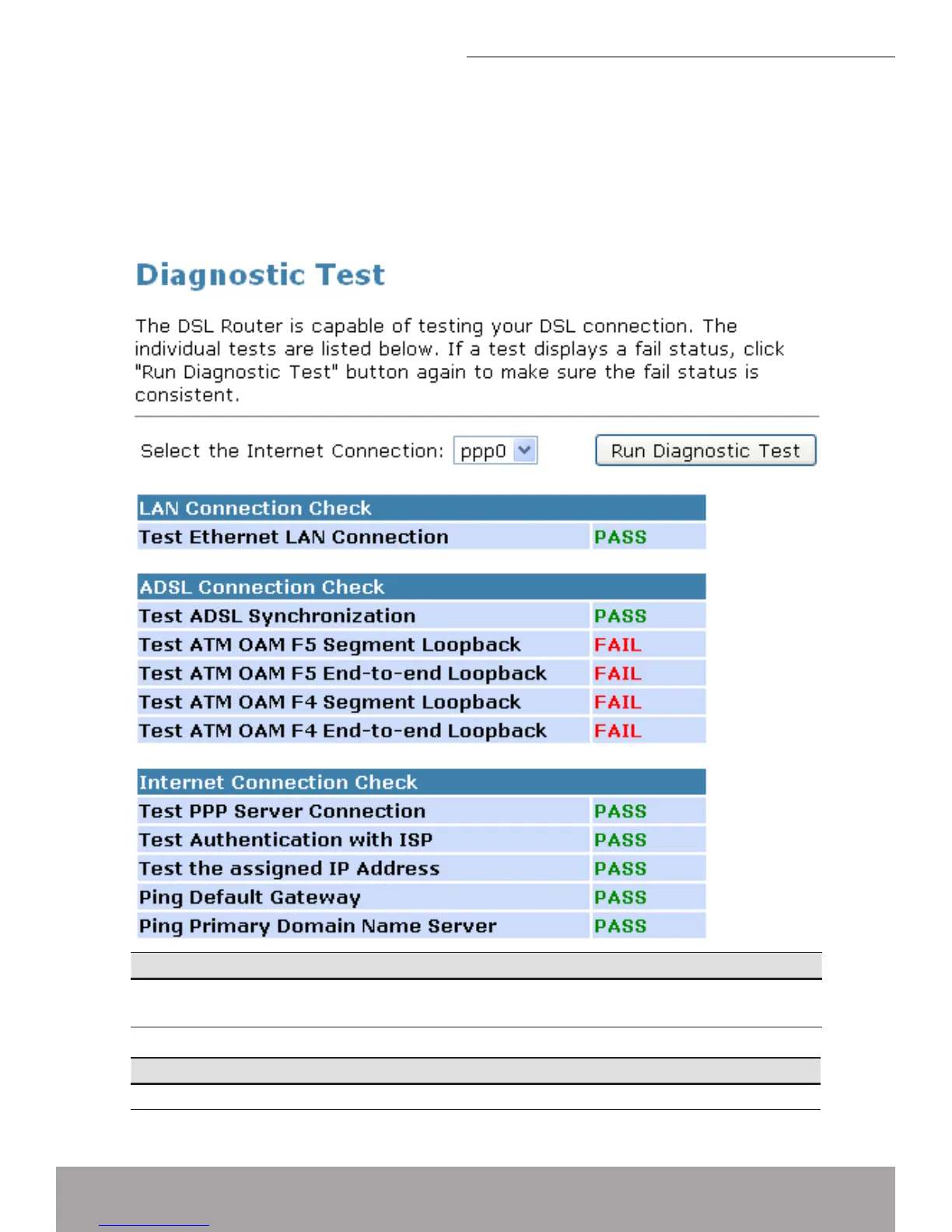

From the left-hand • Diagnostic menu, click on DiagnosticTest. The following
page is displayed:
Click • RUNDiagnosticTest button to start the ADSL diagnostic.
Fields Description
Select the Internet
Connection
The available WAN side interfaces are listed. You have
to select one for the WAN side diagnostic.
Function buttons Description
RUN Diagnostic Test To start the RUN Diagnostic Test
