114
802.11n WL
AN ADSL2+ Router
ADSL

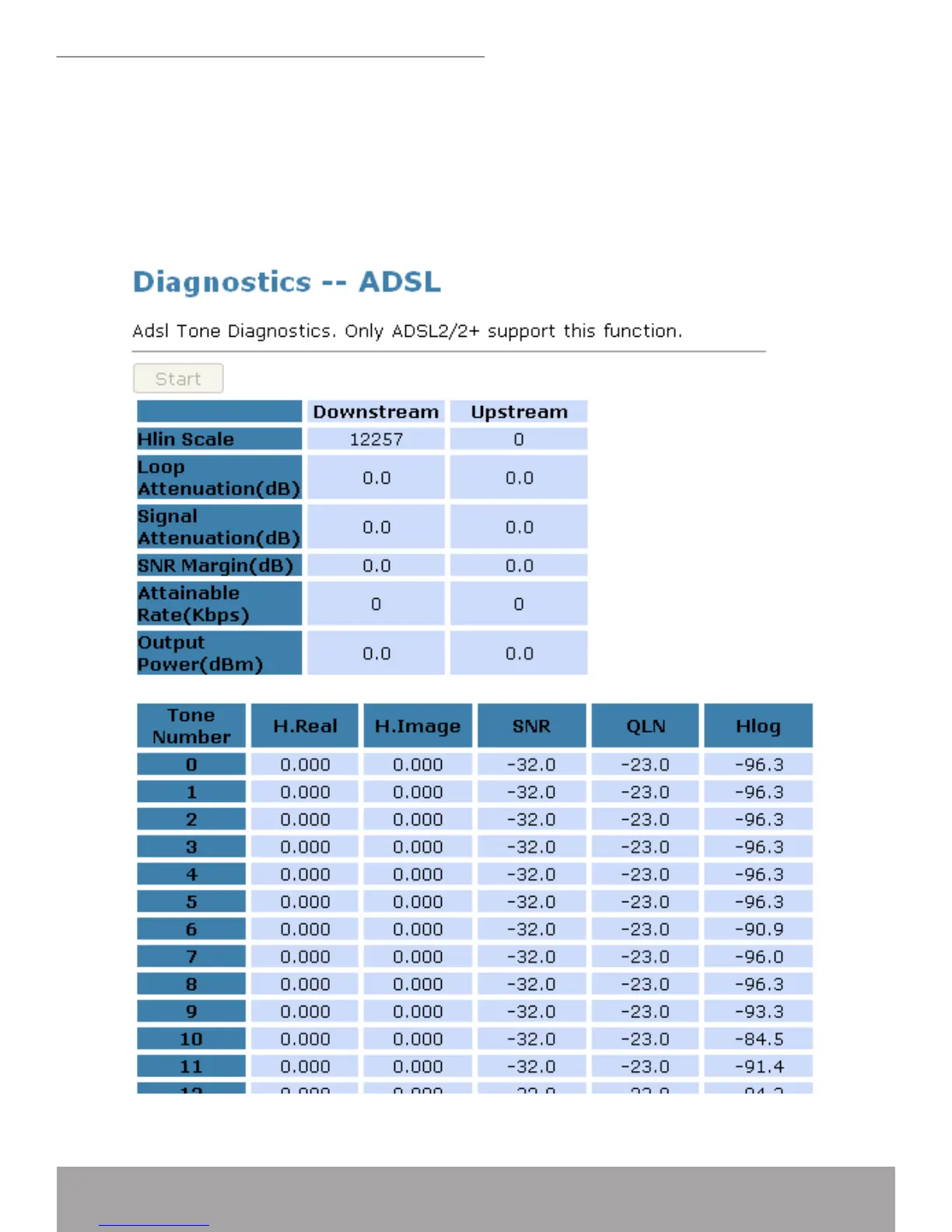

This
page
shows
the ADSL
diagnostic
result.
Click
Start
button
to
start
the
ADSL
diagnostic.
From
the
left-hand
•
Diagnostic
menu,
click
on
ADSL
.
The
following
page
is
displayed:
Click Start button to start the
ADSL diagnostic.
•
113
115
