112
802.11n WL
AN ADSL2+ Router
From the left-hand
•
Diagnostic
menu,
click on
Ping

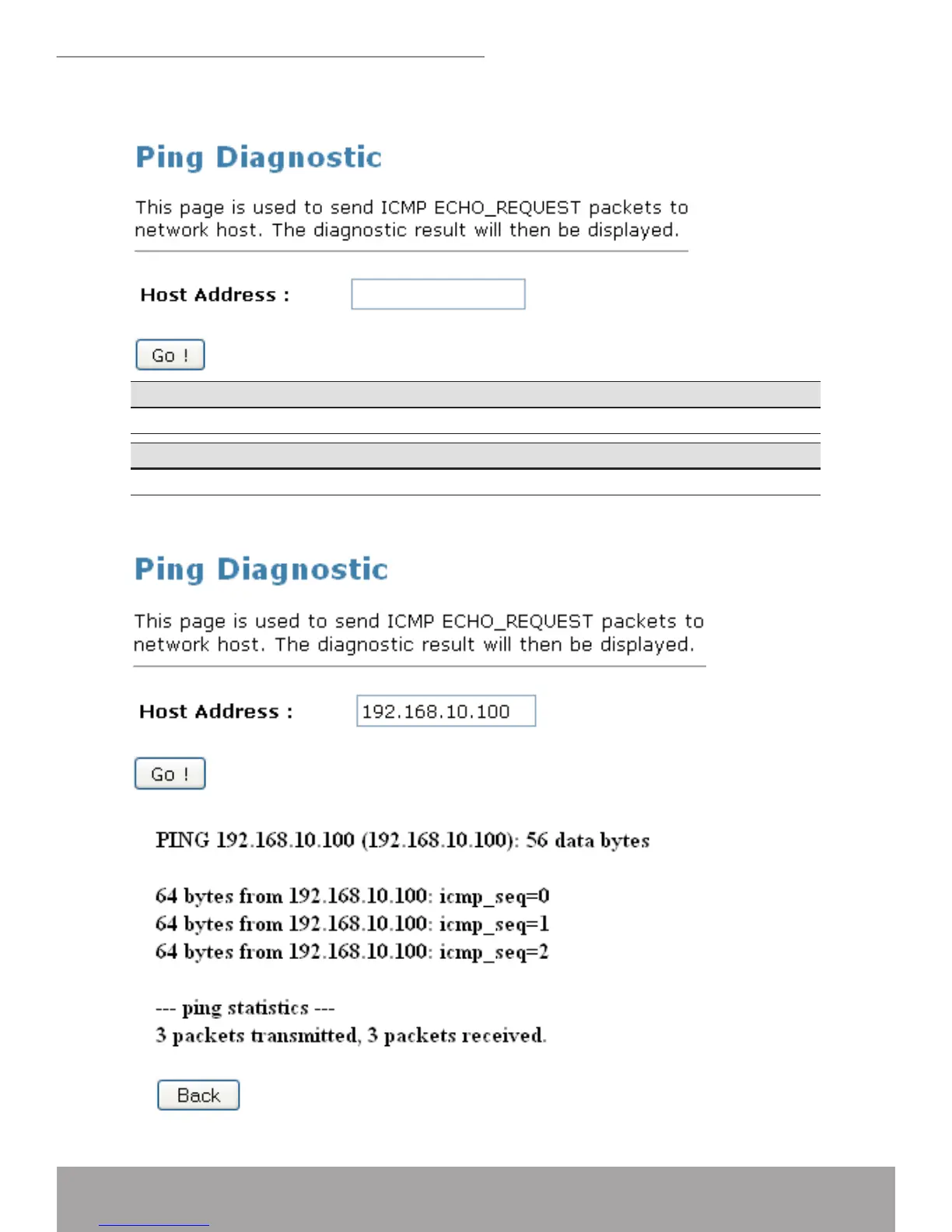

. The following page is dis
-
played:
F
ie
ld
s
Description
Host
Address
The IP address you want to ping.
Function buttons
Description
Go
T
o start the ping command
T
ype the IP
Address in the
•
Host
Address
eld.
Click
•
Go
Now you could see the result below:
•
111
113
