42

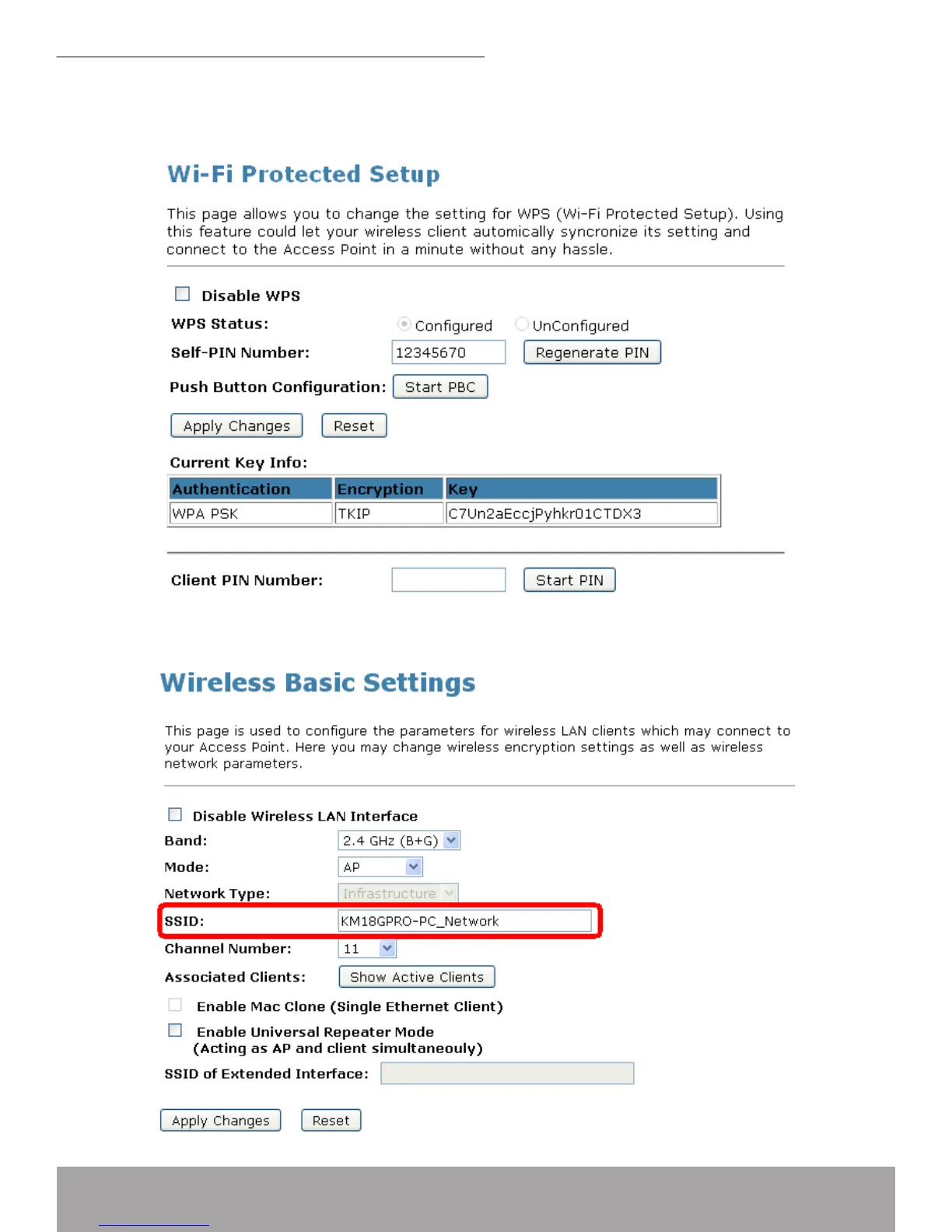

802.11n WL
AN ADSL2+ Router
16.
Finally
,
AP
will
become
congured
(see
WPS
Status).
The
authentication
al
-
gorithm,
encryption
algorithm,
and
key
assigned
by
WCN
will
be
displayed
below
“Current Key Info”.
17.
The
SSID
eld
of
Wireless
Basic
Settings
page
will
also
be
modied
with
the
value assigned by WCN.
41
43
Table of Contents
Default Chapter
2
Table of Contents
2
Device Requirements
5
Introduction
5
Using this Document
6
Special Messages
6
Getting to Know the Device
6
Parts Check
6
Front Panel
7
Rear Panel
8
Connecting Your Device
9
Configuring Ethernet Pcs
10
Connecting the Hardware
10
Easy Setup
11
WAN Configuration
11
Getting Started with the Web Pages
16
Accessing the Web Pages
16
Testing Your Setup
18
Internet Access Settings
18
Default Device Settings
18
Overview
19
Internet Access Settings
20
About Wireless ADSL2+ Router
21
Wireless Network
21
Basic Settings
21
Advanced Settings
23
Security
25
Access Control
30
Allow Listed
31
Wps
33
Operations of AP - AP Being an Enrollee
36
Operations of AP - AP Being a Registrar
43
Internet Access
48
Types of Internet Access
49
Configuring Your Pppoe DSL Connection
49
Configuring Your Pppoa DSL Connection
51
Configuring Your Bridged DSL Connection
52
Configuring Your 1483 MER by DHCP
53
Configuring Your 1483 MER by Fixed IP
54
ATM Settings
55
ADSL Settings
56
Local Network Configuration
58
Changing the LAN IP Address and Subnet Mask
58
Adding the Secondary LAN IP Address and Subnet Mask
61
DHCP Settings
62
DHCP Server Configuration
63
DHCP Relay Configuration
65
DHCP None Configuration
67
DNS Configuration
69
DHCP Server Configuration - Attain DNS Automatically
69
DHCP Server Configuration - Set DNS Manually
71
Overview of Dynamic DNS
72
Dynamic DNS Configuration - Dyndns.org
74
Ip/Port Filtering
77
MAC Filtering
79
Configuring MAC Filtering to Deny for Outgoing Access
79
Port Forwarding
81
Configuring Port Forwarding
81
Configuring Custom Applications
82
URL Blocking
89
Configuring URL Blocking of FQDN
89
Configuring URL Blocking of Keyword
91
Domain Blocking
93
Configuring Domain Blocking
93
Dmz
95
Configuring DMZ
95
Upnp
97
Configuring Upnp
97
Upnp Control Point Software on Windows ME
99
Upnp Control Point Software on Windows XP with Firewall
99
Rip
101
ARP Table
103
Bridging
103
Routing
104
Snmp
106
Port Mapping
107
IP Qos
109
Remote Access
110
Others
111
Diagnostic
111
ATM Loopback
113
Adsl
114
Diagnostic Test
115
Commit/Reboot
116
Backup/Restore
117
Backup Settings
117
Restore Settings
118
Resetting to Defaults
118
Software Reset
119
Password
120
Setting Your Username and Password
120
Firmware Update
122
About Firmware Versions
122
Manually Updating Firmware
122
ACL Configuration
125
ACL Config
125
Time Zone
127
SNTP Server and SNTP Client Configuration Settings
127
TR-069 Config
132
TR-069 Configuration
132
Statistics
133
Interfaces
133
Adsl
134
Configuring Your Computers
135
Configuring Ethernet Pcs
135
Assigning Static Internet Information to Your Pcs
138
IP Addresses, Network Masks, and Subnets
139
IP Addresses
139
Subnet Masks
141
Troubleshooting
141
Troubleshooting Suggestions
142
Diagnosing Problem Using IP Utilities
143
Glossary
145
