802.11n WL
AN ADSL2+ Router
6.
If the
device
PCB
and
the
WPS handshake
is
successfully
done
on
the
station
side, User

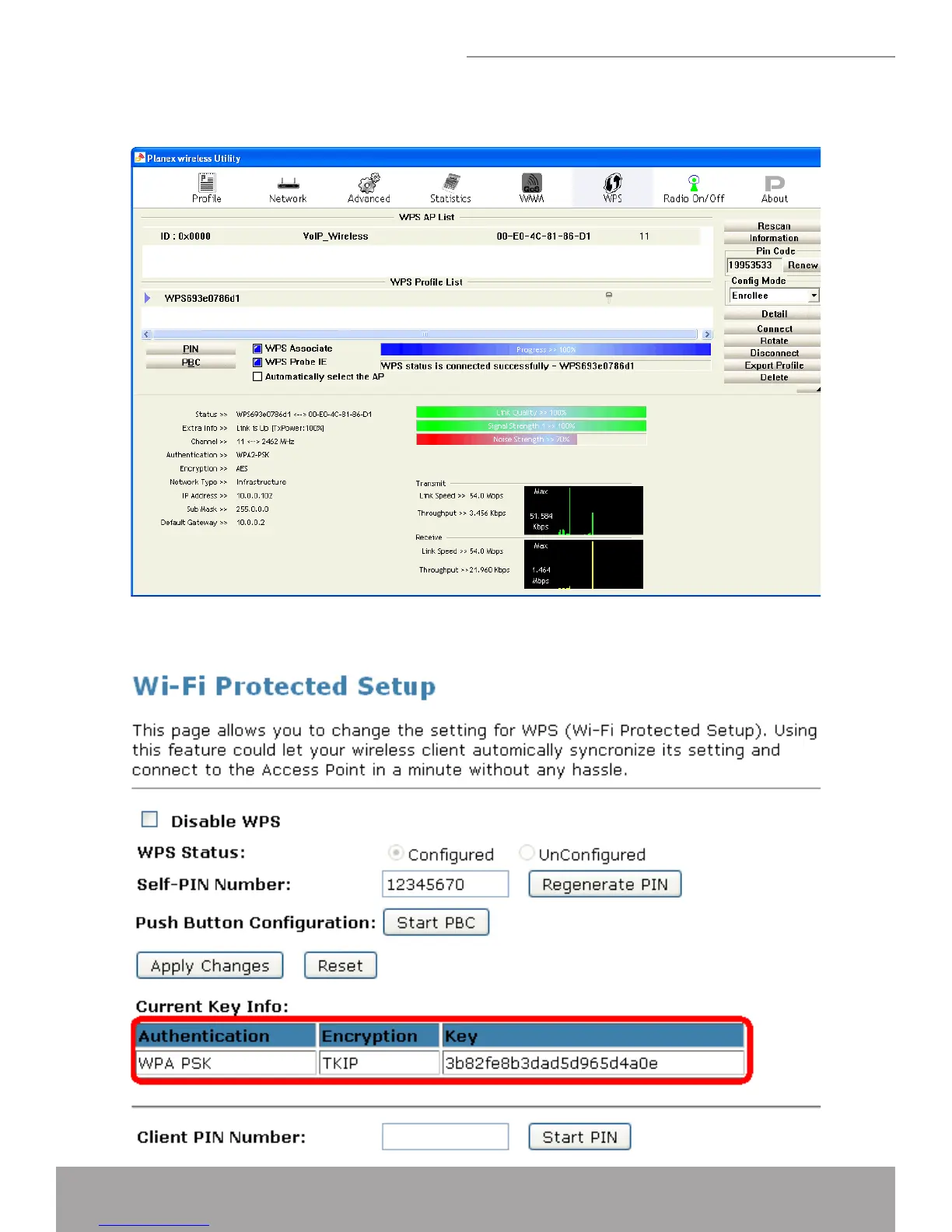

’s Wi-Fi Protected status will be shown as below
.
7. If the
device PIN is correct
and the WPS handshake
is successfully done,
AP’s
Wi-Fi Protected Setup page will be shown as below
.
